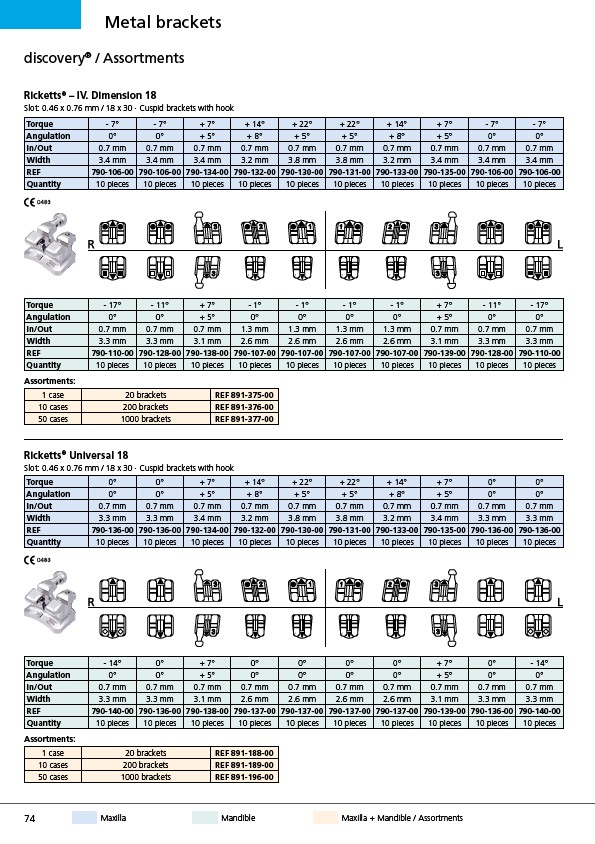

Metal brackets
discovery® / Assortments
Ricketts® – IV. Dimension 18
Slot: 0.46 x 0.76 mm / 18 x 30 · Cuspid brackets with hook
Torque - 7° - 7° + 7° + 14° + 22° + 22° + 14° + 7° - 7° - 7°
Angulation 0° 0° + 5° + 8° + 5° + 5° + 8° + 5° 0° 0°
In/Out 0.7 mm 0.7 mm 0.7 mm 0.7 mm 0.7 mm 0.7 mm 0.7 mm 0.7 mm 0.7 mm 0.7 mm
Width 3.4 mm 3.4 mm 3.4 mm 3.2 mm 3.8 mm 3.8 mm 3.2 mm 3.4 mm 3.4 mm 3.4 mm
REF 790-106-00 790-106-00 790-134-00 790-132-00 790-130-00 790-131-00 790-133-00 790-135-00 790-106-00 790-106-00
Quantity 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces
74 Maxilla Mandible Maxilla + Mandible / Assortments
Torque - 17° - 11° + 7° - 1° - 1° - 1° - 1° + 7° - 11° - 17°
Angulation 0° 0° + 5° 0° 0° 0° 0° + 5° 0° 0°
In/Out 0.7 mm 0.7 mm 0.7 mm 1.3 mm 1.3 mm 1.3 mm 1.3 mm 0.7 mm 0.7 mm 0.7 mm
Width 3.3 mm 3.3 mm 3.1 mm 2.6 mm 2.6 mm 2.6 mm 2.6 mm 3.1 mm 3.3 mm 3.3 mm
REF 790-110-00 790-128-00 790-138-00 790-107-00 790-107-00 790-107-00 790-107-00 790-139-00 790-128-00 790-110-00
Quantity 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces
Assortments:
1 case 20 brackets REF 891-375-00
10 cases 200 brackets REF 891-376-00
50 cases 1000 brackets REF 891-377-00
Ricketts® Universal 18
Slot: 0.46 x 0.76 mm / 18 x 30 · Cuspid brackets with hook
Torque 0° 0° + 7° + 14° + 22° + 22° + 14° + 7° 0° 0°
Angulation 0° 0° + 5° + 8° + 5° + 5° + 8° + 5° 0° 0°
In/Out 0.7 mm 0.7 mm 0.7 mm 0.7 mm 0.7 mm 0.7 mm 0.7 mm 0.7 mm 0.7 mm 0.7 mm
Width 3.3 mm 3.3 mm 3.4 mm 3.2 mm 3.8 mm 3.8 mm 3.2 mm 3.4 mm 3.3 mm 3.3 mm
REF 790-136-00 790-136-00 790-134-00 790-132-00 790-130-00 790-131-00 790-133-00 790-135-00 790-136-00 790-136-00
Quantity 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces
Torque - 14° 0° + 7° 0° 0° 0° 0° + 7° 0° - 14°
Angulation 0° 0° + 5° 0° 0° 0° 0° + 5° 0° 0°
In/Out 0.7 mm 0.7 mm 0.7 mm 0.7 mm 0.7 mm 0.7 mm 0.7 mm 0.7 mm 0.7 mm 0.7 mm
Width 3.3 mm 3.3 mm 3.1 mm 2.6 mm 2.6 mm 2.6 mm 2.6 mm 3.1 mm 3.3 mm 3.3 mm
REF 790-140-00 790-136-00 790-138-00 790-137-00 790-137-00 790-137-00 790-137-00 790-139-00 790-136-00 790-140-00
Quantity 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces
Assortments:
1 case 20 brackets REF 891-188-00
10 cases 200 brackets REF 891-189-00
50 cases 1000 brackets REF 891-196-00
