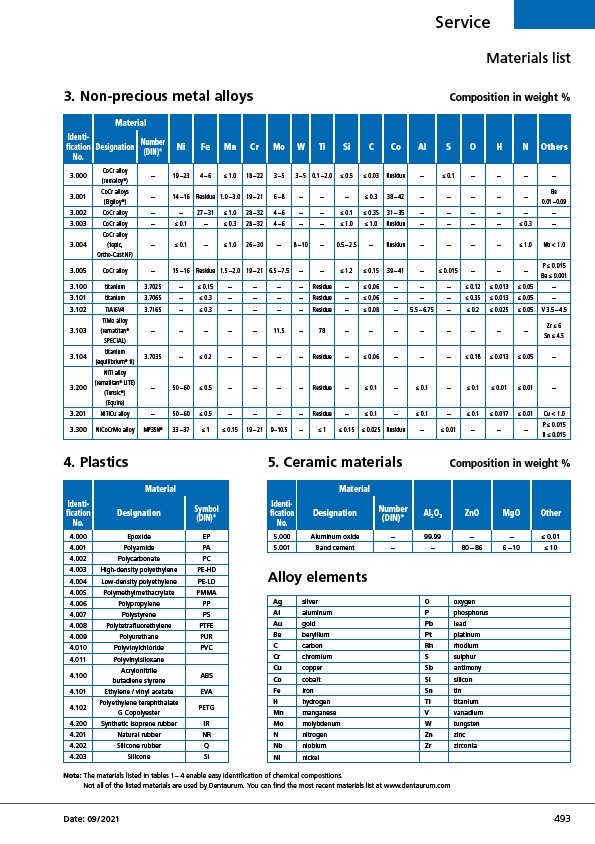

Service
Materials list
3. Non-precious metal alloys Composition in weight %
Material
Identification
No.
Designation Number
(DIN)* Ni Fe Mn Cr Mo W Ti Si C Co Al S O H N Others
3.000
CoCr alloy
(remaloy®)
– 19 – 23 4 – 6 ≤ 1.0 18 – 22 3 – 5 3 – 5 0.1 – 2.0 ≤ 0.5 ≤ 0.03 Residue – ≤ 0.1 – – – –
3.001
CoCr alloys
(Elgiloy®)
– 14 – 16 Residue 1.0 – 3.0 19 – 21 6 – 8 – – – ≤ 0.3 38 – 42 – – – – –
Be
0.01 – 0.09
3.002 CoCr alloy – – 27 – 31 ≤ 1.0 28 – 32 4 – 6 – – ≤ 0.1 ≤ 0.35 31 – 35 – – – – – –
3.003 CoCr alloy – ≤ 0.1 – ≤ 0.3 28 – 32 4 – 6 – – ≤ 1.0 ≤ 1.0 Residue – – – – ≤ 0.3 –
3.004
CoCr alloy
(topic,
Ortho-Cast NF)
– ≤ 0.1 – ≤ 1.0 26 – 30 – 8 – 10 – 0.5 – 2.5 – Residue – – – – ≤ 1.0 Nb < 1.0
3.005 CoCr alloy – 15 – 16 Residue 1.5 – 2.0 19 – 21 6.5 – 7.5 – – ≤ 1.2 ≤ 0.15 39 – 41 – ≤ 0.015 – – –
P ≤ 0.015
Be ≤ 0.001
3.100 titanium 3.7025 – ≤ 0.15 – – – – Residue – ≤ 0.06 – – – ≤ 0.12 ≤ 0.013 ≤ 0.05 –
3.101 titanium 3.7065 – ≤ 0.3 – – – – Residue – ≤ 0.06 – – – ≤ 0.35 ≤ 0.013 ≤ 0.05 –
3.102 TiAI6V4 3.7165 – ≤ 0.3 – – – – Residue – ≤ 0.08 – 5.5 – 6.75 – ≤ 0.2 ≤ 0.025 ≤ 0.05 V 3.5 – 4.5
3.103
TiMo alloy
(rematitan®
SPECIAL)
– – – – – 11.5 – 78 – – – – – – – –
Zr ≤ 6
Sn ≤ 4.5
3.104
titanium
(equilibrium® ti)
3.7035 – ≤ 0.2 – – – – Residue – ≤ 0.06 – – – ≤ 0.18 ≤ 0.013 ≤ 0.05 –
3.200
NiTi alloy
(rematitan® LITE)
(Tensic®)
(Equire)
– 50 – 60 ≤ 0.5 – – – – Residue – ≤ 0.1 – ≤ 0.1 – ≤ 0.1 ≤ 0.01 ≤ 0.01 –
3.201 NiTiCu alloy – 50 – 60 ≤ 0.5 – – – – Residue – ≤ 0.1 – ≤ 0.1 – ≤ 0.1 ≤ 0.017 ≤ 0.01 Cu < 1.0
3.300 NiCoCrMo alloy MP35N® 33 – 37 ≤ 1 ≤ 0.15 19 – 21 9 – 10.5 – ≤ 1 ≤ 0.15 ≤ 0.025 Residue – ≤ 0.01 – – –
P ≤ 0.015
B ≤ 0.015
4. Plastics
Material
Identification
No.
Designation Symbol
(DIN)*
4.000 Epoxide EP
4.001 Polyamide PA
4.002 Polycarbonate PC
4.003 High-density polyethylene PE-HD
4.004 Low-density polyethylene PE-LD
4.005 Polymethylmethacrylate PMMA
4.006 Polypropylene PP
4.007 Polystyrene PS
4.008 Polytetrafluorethylene PTFE
4.009 Polyurethane PUR
4.010 Polyvinylchloride PVC
4.011 Polyvinylsiloxane
4.100
Acrylonitrile
butadiene styrene
ABS
4.101 Ethylene / vinyl acetate EVA
4.102
Polyethylene terephthalate
G Copolyester
PETG
4.200 Synthetic isoprene rubber IR
4.201 Natural rubber NR
4.202 Silicone rubber Q
4.203 Silicone SI
5. Ceramic materials Composition in weight %
Material
Identification
No.
Designation Number
(DIN)* Al2O3 ZnO MgO Other
5.000 Aluminum oxide – 99.99 – – ≤ 0.01
5.001 Band cement – – 80 – 86 6 – 10 ≤ 10
Alloy elements
Ag silver O oxygen
Al aluminum P phosphorus
Au gold Pb lead
Be beryllium Pt platinum
C carbon Rh rhodium
Cr chromium S sulphur
Cu copper Sb antimony
Co cobalt Si silicon
Fe iron Sn tin
H hydrogen Ti titanium
Mn manganese V vanadium
Mo molybdenum W tungsten
N nitrogen Zn zinc
Nb niobium Zr zirconia
Ni nickel
Note: The materials listed in tables 1– 4 enable easy identification of chemical compositions.
Not all of the listed materials are used by Dentaurum. You can find the most recent materials list at www.dentaurum.com
Date: 09 / 2021 493
