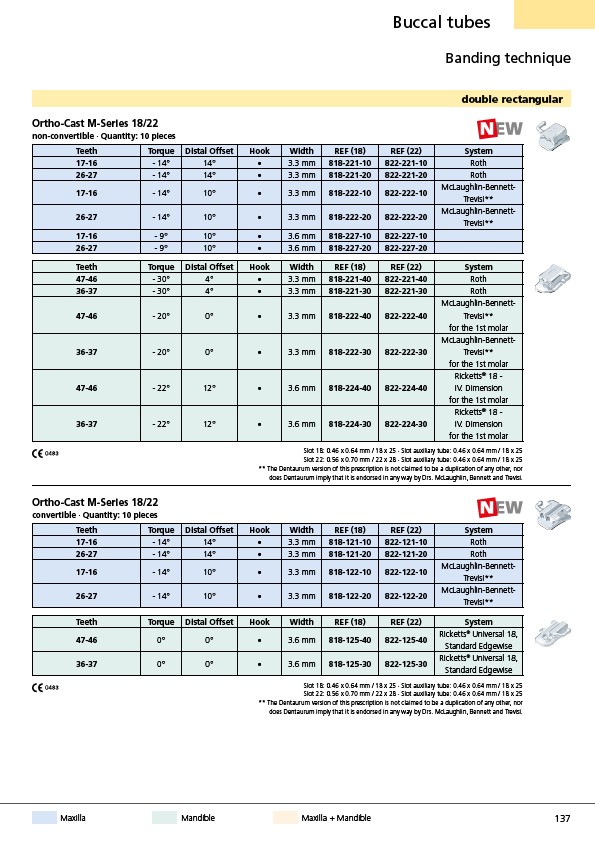

double rectangular
137
Buccal tubes
Ortho-Cast M-Series 18/22
Ortho-Cast M-Series 18/22
Maxilla Mandible Maxilla + Mandible
Banding technique
non-convertible ∙ Quantity: 10 pieces
Teeth Torque Distal Offset Hook Width REF (18) REF (22) System
17-16 - 14° 14° • 3.3 mm 818-221-10 822-221-10 Roth
26-27 - 14° 14° • 3.3 mm 818-221-20 822-221-20 Roth
17-16 - 14° 10° • 3.3 mm 818-222-10 822-222-10
McLaughlin-Bennett-
Trevisi**
26-27 - 14° 10° • 3.3 mm 818-222-20 822-222-20
McLaughlin-Bennett-
Trevisi**
17-16 - 9° 10° • 3.6 mm 818-227-10 822-227-10
26-27 - 9° 10° • 3.6 mm 818-227-20 822-227-20
Teeth Torque Distal Offset Hook Width REF (18) REF (22) System
47-46 - 30° 4° • 3.3 mm 818-221-40 822-221-40 Roth
36-37 - 30° 4° • 3.3 mm 818-221-30 822-221-30 Roth
47-46 - 20° 0° • 3.3 mm 818-222-40 822-222-40
McLaughlin-Bennett-
Trevisi**
for the 1st molar
36-37 - 20° 0° • 3.3 mm 818-222-30 822-222-30
McLaughlin-Bennett-
Trevisi**
for the 1st molar
47-46 - 22° 12° • 3.6 mm 818-224-40 822-224-40
Ricketts® 18 -
IV. Dimension
for the 1st molar
36-37 - 22° 12° • 3.6 mm 818-224-30 822-224-30
Ricketts® 18 -
IV. Dimension
for the 1st molar
Slot 18: 0.46 x 0.64 mm / 18 x 25 · Slot auxiliary tube: 0.46 x 0.64 mm / 18 x 25
Slot 22: 0.56 x 0.70 mm / 22 x 28 · Slot auxiliary tube: 0.46 x 0.64 mm / 18 x 25
** The Dentaurum version of this prescription is not claimed to be a duplication of any other, nor
does Dentaurum imply that it is endorsed in any way by Drs. McLaughlin, Bennett and Trevisi.
convertible ∙ Quantity: 10 pieces
Teeth Torque Distal Offset Hook Width REF (18) REF (22) System
17-16 - 14° 14° • 3.3 mm 818-121-10 822-121-10 Roth
26-27 - 14° 14° • 3.3 mm 818-121-20 822-121-20 Roth
17-16 - 14° 10° • 3.3 mm 818-122-10 822-122-10
McLaughlin-Bennett-
Trevisi**
26-27 - 14° 10° • 3.3 mm 818-122-20 822-122-20
McLaughlin-Bennett-
Trevisi**
Teeth Torque Distal Offset Hook Width REF (18) REF (22) System
47-46 0° 0° • 3.6 mm 818-125-40 822-125-40
Ricketts® Universal 18,
Standard Edgewise
36-37 0° 0° • 3.6 mm 818-125-30 822-125-30
Ricketts® Universal 18,
Standard Edgewise
Slot 18: 0.46 x 0.64 mm / 18 x 25 · Slot auxiliary tube: 0.46 x 0.64 mm / 18 x 25
Slot 22: 0.56 x 0.70 mm / 22 x 28 · Slot auxiliary tube: 0.46 x 0.64 mm / 18 x 25
** The Dentaurum version of this prescription is not claimed to be a duplication of any other, nor
does Dentaurum imply that it is endorsed in any way by Drs. McLaughlin, Bennett and Trevisi.
