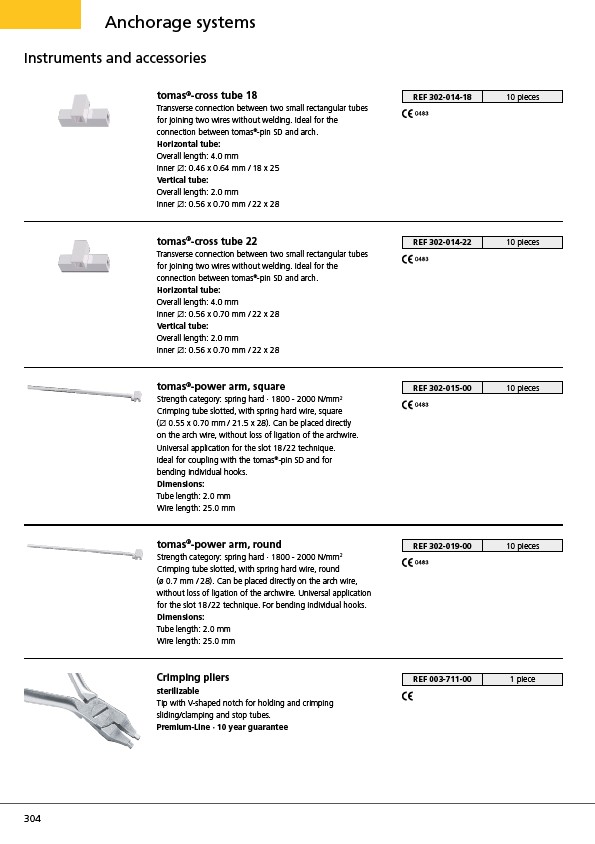

304
Anchorage systems
Instruments and accessories
tomas®-cross tube 18 REF 302-014-18 10 pieces
Transverse connection between two small rectangular tubes
for joining two wires without welding. Ideal for the
connection between tomas®-pin SD and arch.
Horizontal tube:
Overall length: 4.0 mm
Inner F: 0.46 x 0.64 mm / 18 x 25
Vertical tube:
Overall length: 2.0 mm
Inner F: 0.56 x 0.70 mm / 22 x 28
tomas®-cross tube 22 REF 302-014-22 10 pieces
Transverse connection between two small rectangular tubes
for joining two wires without welding. Ideal for the
connection between tomas®-pin SD and arch.
Horizontal tube:
Overall length: 4.0 mm
Inner F: 0.56 x 0.70 mm / 22 x 28
Vertical tube:
Overall length: 2.0 mm
Inner F: 0.56 x 0.70 mm / 22 x 28
tomas®-power arm, square REF 302-015-00 10 pieces
Strength category: spring hard · 1800 - 2000 N/mm2
Crimping tube slotted, with spring hard wire, square
(F 0.55 x 0.70 mm / 21.5 x 28). Can be placed directly
on the arch wire, without loss of ligation of the archwire.
Universal application for the slot 18 / 22 technique.
Ideal for coupling with the tomas®-pin SD and for
bending individual hooks.
Dimensions:
Tube length: 2.0 mm
Wire length: 25.0 mm
tomas®-power arm, round REF 302-019-00 10 pieces
Strength category: spring hard · 1800 - 2000 N/mm2
Crimping tube slotted, with spring hard wire, round
(ø 0.7 mm / 28). Can be placed directly on the arch wire,
without loss of ligation of the archwire. Universal application
for the slot 18 / 22 technique. For bending individual hooks.
Dimensions:
Tube length: 2.0 mm
Wire length: 25.0 mm
Crimping pliers REF 003-711-00 1 piece
sterilizable
Tip with V-shaped notch for holding and crimping
sliding/clamping and stop tubes.
Premium-Line · 10 year guarantee
