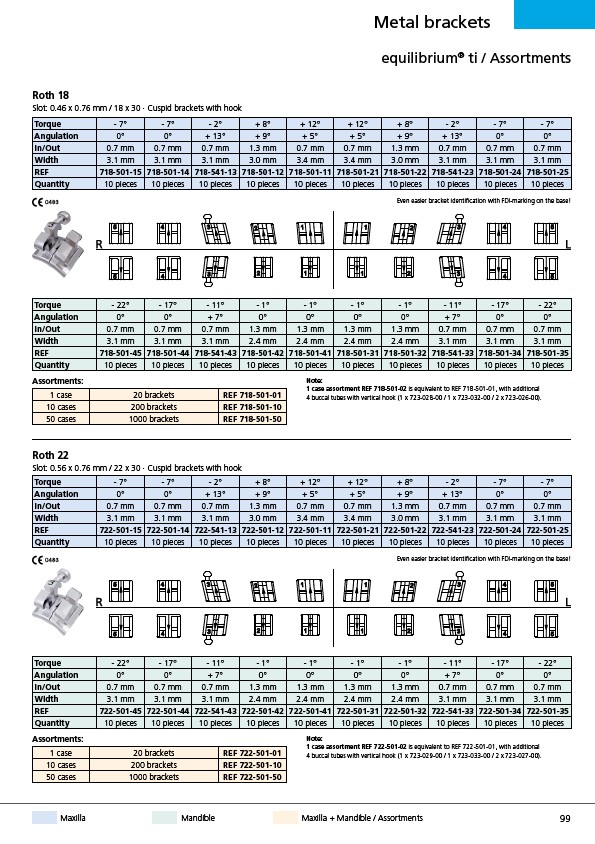

Metal brackets
equilibrium® ti / Assortments
Roth 18
Slot: 0.46 x 0.76 mm / 18 x 30 · Cuspid brackets with hook
Torque - 7° - 7° - 2° + 8° + 12° + 12° + 8° - 2° - 7° - 7°
Angulation 0° 0° + 13° + 9° + 5° + 5° + 9° + 13° 0° 0°
In/Out 0.7 mm 0.7 mm 0.7 mm 1.3 mm 0.7 mm 0.7 mm 1.3 mm 0.7 mm 0.7 mm 0.7 mm
Width 3.1 mm 3.1 mm 3.1 mm 3.0 mm 3.4 mm 3.4 mm 3.0 mm 3.1 mm 3.1 mm 3.1 mm
REF 718-501-15 718-501-14 718-541-13 718-501-12 718-501-11 718-501-21 718-501-22 718-541-23 718-501-24 718-501-25
Quantity 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces
Even easier bracket identification with FDI-marking on the base!
Torque - 22° - 17° - 11° - 1° - 1° - 1° - 1° - 11° - 17° - 22°
Angulation 0° 0° + 7° 0° 0° 0° 0° + 7° 0° 0°
In/Out 0.7 mm 0.7 mm 0.7 mm 1.3 mm 1.3 mm 1.3 mm 1.3 mm 0.7 mm 0.7 mm 0.7 mm
Width 3.1 mm 3.1 mm 3.1 mm 2.4 mm 2.4 mm 2.4 mm 2.4 mm 3.1 mm 3.1 mm 3.1 mm
REF 718-501-45 718-501-44 718-541-43 718-501-42 718-501-41 718-501-31 718-501-32 718-541-33 718-501-34 718-501-35
Quantity 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces
Assortments:
1 case 20 brackets REF 718-501-01
10 cases 200 brackets REF 718-501-10
50 cases 1000 brackets REF 718-501-50
Note:
1 case assortment REF 718-501-02 is equivalent to REF 718-501-01, with additional
4 buccal tubes with vertical hook (1 x 723-028-00 / 1 x 723-032-00 / 2 x 723-026-00).
Roth 22
Slot: 0.56 x 0.76 mm / 22 x 30 · Cuspid brackets with hook
Torque - 7° - 7° - 2° + 8° + 12° + 12° + 8° - 2° - 7° - 7°
Angulation 0° 0° + 13° + 9° + 5° + 5° + 9° + 13° 0° 0°
In/Out 0.7 mm 0.7 mm 0.7 mm 1.3 mm 0.7 mm 0.7 mm 1.3 mm 0.7 mm 0.7 mm 0.7 mm
Width 3.1 mm 3.1 mm 3.1 mm 3.0 mm 3.4 mm 3.4 mm 3.0 mm 3.1 mm 3.1 mm 3.1 mm
REF 722-501-15 722-501-14 722-541-13 722-501-12 722-501-11 722-501-21 722-501-22 722-541-23 722-501-24 722-501-25
Quantity 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces
Even easier bracket identification with FDI-marking on the base!
Torque - 22° - 17° - 11° - 1° - 1° - 1° - 1° - 11° - 17° - 22°
Angulation 0° 0° + 7° 0° 0° 0° 0° + 7° 0° 0°
In/Out 0.7 mm 0.7 mm 0.7 mm 1.3 mm 1.3 mm 1.3 mm 1.3 mm 0.7 mm 0.7 mm 0.7 mm
Width 3.1 mm 3.1 mm 3.1 mm 2.4 mm 2.4 mm 2.4 mm 2.4 mm 3.1 mm 3.1 mm 3.1 mm
REF 722-501-45 722-501-44 722-541-43 722-501-42 722-501-41 722-501-31 722-501-32 722-541-33 722-501-34 722-501-35
Quantity 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces 10 pieces
Assortments:
1 case 20 brackets REF 722-501-01
10 cases 200 brackets REF 722-501-10
50 cases 1000 brackets REF 722-501-50
Note:
1 case assortment REF 722-501-02 is equivalent to REF 722-501-01, with additional
4 buccal tubes with vertical hook (1 x 723-029-00 / 1 x 723-033-00 / 2 x 723-027-00).
Maxilla Mandible Maxilla + Mandible / Assortments 99
