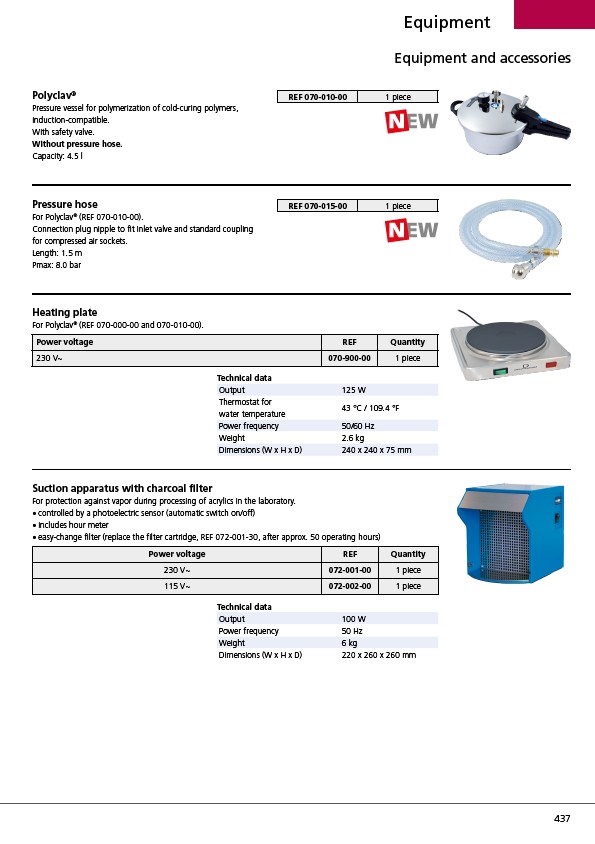

Equipment and accessories
437
Equipment
Polyclav® REF 070-010-00 1 piece
Pressure vessel for polymerization of cold-curing polymers,
induction-compatible.
With safety valve.
Without pressure hose.
Capacity: 4.5 l
Pressure hose REF 070-015-00 1 piece
For Polyclav® (REF 070-010-00).
Connection plug nipple to fit inlet valve and standard coupling
for compressed air sockets.
Length: 1.5 m
Pmax: 8.0 bar
Heating plate
For Polyclav® (REF 070-000-00 and 070-010-00).
Power voltage REF Quantity
230 V~ 070-900-00 1 piece
Suction apparatus with charcoal filter
Technical data
Output 125 W
Thermostat for
water temperature
43 °C / 109.4 °F
Power frequency 50/60 Hz
Weight 2.6 kg
Dimensions (W x H x D) 240 x 240 x 75 mm
For protection against vapor during processing of acrylics in the laboratory.
• controlled by a photoelectric sensor (automatic switch on/off)
• includes hour meter
• easy-change filter (replace the filter cartridge, REF 072-001-30, after approx. 50 operating hours)
Power voltage REF Quantity
230 V~ 072-001-00 1 piece
115 V~ 072-002-00 1 piece
Technical data
Output 100 W
Power frequency 50 Hz
Weight 6 kg
Dimensions (W x H x D) 220 x 260 x 260 mm
