Expansion screws
Standard expansion screws
DENTAURUM
ONLINE
SHOP
shop.dentaurum.com

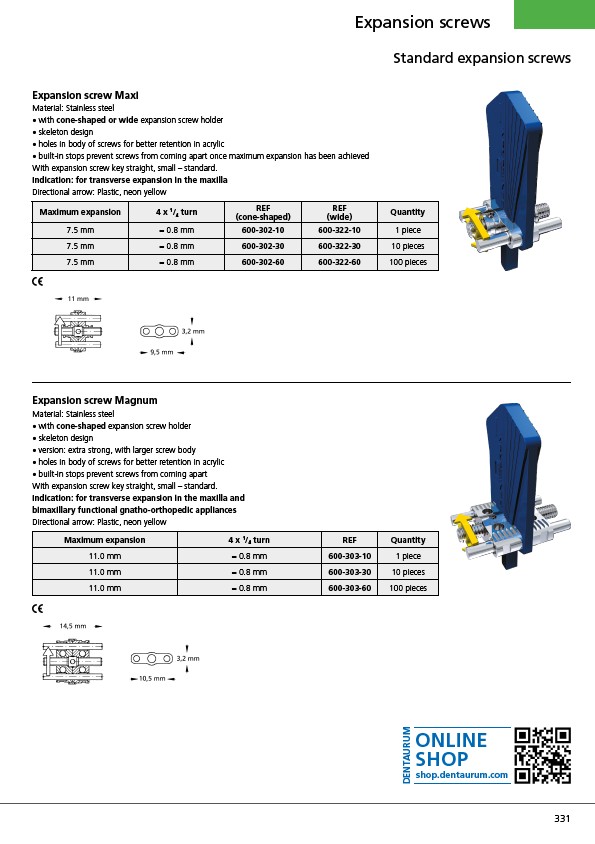

Expansion screw Maxi
Material: Stainless steel
• with cone-shaped or wide expansion screw holder
• skeleton design
• holes in body of screws for better retention in acrylic
• built-in stops prevent screws from coming apart once maximum expansion has been achieved
With expansion screw key straight, small – standard.
Indication: for transverse expansion in the maxilla
Directional arrow: Plastic, neon yellow
Maximum expansion 4 x 1/4 turn REF
(cone-shaped)
REF
(wide) Quantity
7.5 mm = 0.8 mm 600-302-10 600-322-10 1 piece
7.5 mm = 0.8 mm 600-302-30 600-322-30 10 pieces
7.5 mm = 0.8 mm 600-302-60 600-322-60 100 pieces
Expansion screw Magnum
Material: Stainless steel
• with cone-shaped expansion screw holder
• skeleton design
• version: extra strong, with larger screw body
• holes in body of screws for better retention in acrylic
• built-in stops prevent screws from coming apart
With expansion screw key straight, small – standard.
Indication: for transverse expansion in the maxilla and
bimaxillary functional gnatho-orthopedic appliances
Directional arrow: Plastic, neon yellow
Maximum expansion 4 x 1/4 turn REF Quantity
11.0 mm = 0.8 mm 600-303-10 1 piece
11.0 mm = 0.8 mm 600-303-30 10 pieces
11.0 mm = 0.8 mm 600-303-60 100 pieces
