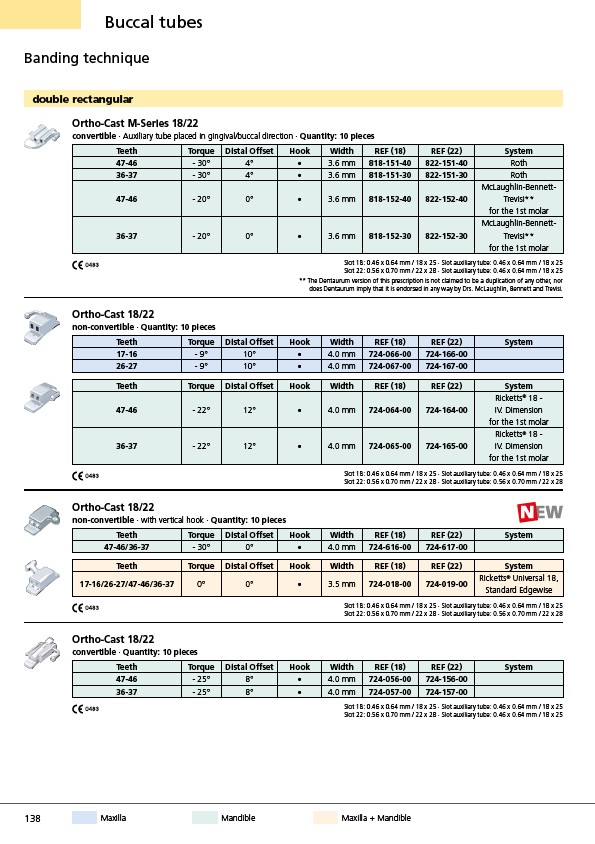

Banding technique
double rectangular
138
Buccal tubes
Ortho-Cast M-Series 18/22
convertible ∙ Auxiliary tube placed in gingival/buccal direction ∙ Quantity: 10 pieces
Teeth Torque Distal Offset Hook Width REF (18) REF (22) System
47-46 - 30° 4° • 3.6 mm 818-151-40 822-151-40 Roth
36-37 - 30° 4° • 3.6 mm 818-151-30 822-151-30 Roth
47-46 - 20° 0° • 3.6 mm 818-152-40 822-152-40
Ortho-Cast 18/22
Ortho-Cast 18/22
Ortho-Cast 18/22
Maxilla Mandible Maxilla + Mandible
McLaughlin-Bennett-
Trevisi**
for the 1st molar
36-37 - 20° 0° • 3.6 mm 818-152-30 822-152-30
McLaughlin-Bennett-
Trevisi**
for the 1st molar
Slot 18: 0.46 x 0.64 mm / 18 x 25 · Slot auxiliary tube: 0.46 x 0.64 mm / 18 x 25
Slot 22: 0.56 x 0.70 mm / 22 x 28 · Slot auxiliary tube: 0.46 x 0.64 mm / 18 x 25
** The Dentaurum version of this prescription is not claimed to be a duplication of any other, nor
does Dentaurum imply that it is endorsed in any way by Drs. McLaughlin, Bennett and Trevisi.
non-convertible ∙ Quantity: 10 pieces
Teeth Torque Distal Offset Hook Width REF (18) REF (22) System
17-16 - 9° 10° • 4.0 mm 724-066-00 724-166-00
26-27 - 9° 10° • 4.0 mm 724-067-00 724-167-00
Teeth Torque Distal Offset Hook Width REF (18) REF (22) System
47-46 - 22° 12° • 4.0 mm 724-064-00 724-164-00
Ricketts® 18 -
IV. Dimension
for the 1st molar
36-37 - 22° 12° • 4.0 mm 724-065-00 724-165-00
Ricketts® 18 -
IV. Dimension
for the 1st molar
Slot 18: 0.46 x 0.64 mm / 18 x 25 · Slot auxiliary tube: 0.46 x 0.64 mm / 18 x 25
Slot 22: 0.56 x 0.70 mm / 22 x 28 · Slot auxiliary tube: 0.56 x 0.70 mm / 22 x 28
non-convertible ∙ with vertical hook ∙ Quantity: 10 pieces
Teeth Torque Distal Offset Hook Width REF (18) REF (22) System
47-46/36-37 - 30° 0° • 4.0 mm 724-616-00 724-617-00
Teeth Torque Distal Offset Hook Width REF (18) REF (22) System
17-16/26-27/47-46/36-37 0° 0° • 3.5 mm 724-018-00 724-019-00
Ricketts® Universal 18,
Standard Edgewise
Slot 18: 0.46 x 0.64 mm / 18 x 25 · Slot auxiliary tube: 0.46 x 0.64 mm / 18 x 25
Slot 22: 0.56 x 0.70 mm / 22 x 28 · Slot auxiliary tube: 0.56 x 0.70 mm / 22 x 28
convertible ∙ Quantity: 10 pieces
Teeth Torque Distal Offset Hook Width REF (18) REF (22) System
47-46 - 25° 8° • 4.0 mm 724-056-00 724-156-00
36-37 - 25° 8° • 4.0 mm 724-057-00 724-157-00
Slot 18: 0.46 x 0.64 mm / 18 x 25 · Slot auxiliary tube: 0.46 x 0.64 mm / 18 x 25
Slot 22: 0.56 x 0.70 mm / 22 x 28 · Slot auxiliary tube: 0.46 x 0.64 mm / 18 x 25
