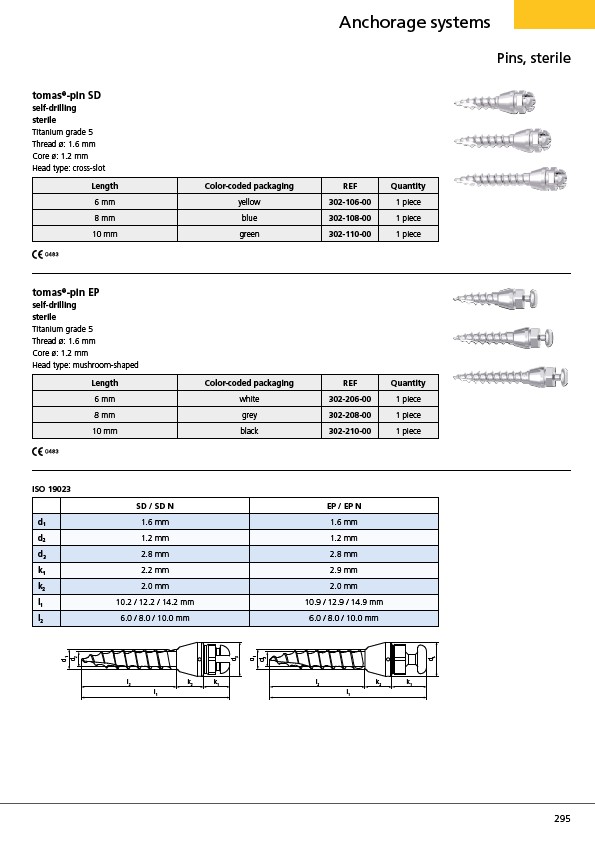

Anchorage systems
Pins, sterile
tomas®-pin SD
self-drilling
sterile
Titanium grade 5
Thread ø: 1.6 mm
Core ø: 1.2 mm
Head type: cross-slot
Length Color-coded packaging REF Quantity
6 mm yellow 302-106-00 1 piece
8 mm blue 302-108-00 1 piece
10 mm green 302-110-00 1 piece
tomas®-pin EP
self-drilling
sterile
Titanium grade 5
Thread ø: 1.6 mm
Core ø: 1.2 mm
Head type: mushroom-shaped
Length Color-coded packaging REF Quantity
6 mm white 302-206-00 1 piece
8 mm grey 302-208-00 1 piece
10 mm black 302-210-00 1 piece
ISO 19023
SD / SD N EP / EP N
d1 1.6 mm 1.6 mm
d2 1.2 mm 1.2 mm
d3 2.8 mm 2.8 mm
k1 2.2 mm 2.9 mm
k2 2.0 mm 2.0 mm
l1 10.2 / 12.2 / 14.2 mm 10.9 / 12.9 / 14.9 mm
l2 6.0 / 8.0 / 10.0 mm 6.0 / 8.0 / 10.0 mm
d3
d1
d2
l2 k2 k1
l1
d3
d1
d2
l2 k2 k1
l1
