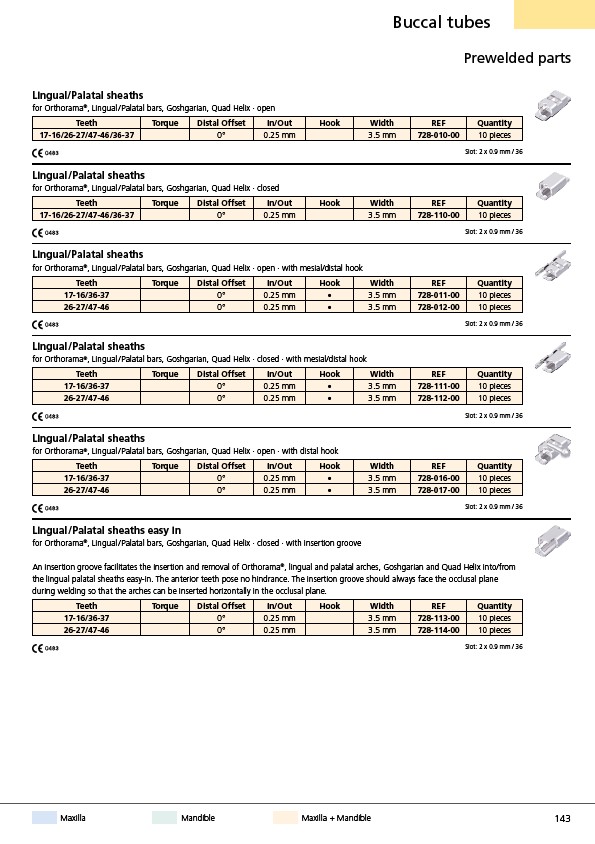

143
Buccal tubes
Lingual/Palatal sheaths
Lingual /Palatal sheaths
Lingual/Palatal sheaths
Lingual /Palatal sheaths
Lingual /Palatal sheaths
Lingual /Palatal sheaths easy in
Maxilla Mandible Maxilla + Mandible
Prewelded parts
for Orthorama®, Lingual / Palatal bars, Goshgarian, Quad Helix · open
Teeth Torque Distal Offset In/Out Hook Width REF Quantity
17-16/26-27/47-46/36-37 0° 0.25 mm 3.5 mm 728-010-00 10 pieces
Slot: 2 x 0.9 mm / 36
for Orthorama®, Lingual / Palatal bars, Goshgarian, Quad Helix · closed
Teeth Torque Distal Offset In/Out Hook Width REF Quantity
17-16/26-27/47-46/36-37 0° 0.25 mm 3.5 mm 728-110-00 10 pieces
Slot: 2 x 0.9 mm / 36
for Orthorama®, Lingual / Palatal bars, Goshgarian, Quad Helix · open ∙ with mesial/distal hook
Teeth Torque Distal Offset In/Out Hook Width REF Quantity
17-16/36-37 0° 0.25 mm • 3.5 mm 728-011-00 10 pieces
26-27/47-46 0° 0.25 mm • 3.5 mm 728-012-00 10 pieces
Slot: 2 x 0.9 mm / 36
for Orthorama®, Lingual / Palatal bars, Goshgarian, Quad Helix · closed ∙ with mesial/distal hook
Teeth Torque Distal Offset In/Out Hook Width REF Quantity
17-16/36-37 0° 0.25 mm • 3.5 mm 728-111-00 10 pieces
26-27/47-46 0° 0.25 mm • 3.5 mm 728-112-00 10 pieces
Slot: 2 x 0.9 mm / 36
for Orthorama®, Lingual / Palatal bars, Goshgarian, Quad Helix · open ∙ with distal hook
Teeth Torque Distal Offset In/Out Hook Width REF Quantity
17-16/36-37 0° 0.25 mm • 3.5 mm 728-016-00 10 pieces
26-27/47-46 0° 0.25 mm • 3.5 mm 728-017-00 10 pieces
Slot: 2 x 0.9 mm / 36
for Orthorama®, Lingual / Palatal bars, Goshgarian, Quad Helix · closed · with insertion groove
An insertion groove facilitates the insertion and removal of Orthorama®, lingual and palatal arches, Goshgarian and Quad Helix into/from
the lingual palatal sheaths easy-in. The anterior teeth pose no hindrance. The insertion groove should always face the occlusal plane
during welding so that the arches can be inserted horizontally in the occlusal plane.
Teeth Torque Distal Offset In/Out Hook Width REF Quantity
17-16/36-37 0° 0.25 mm 3.5 mm 728-113-00 10 pieces
26-27/47-46 0° 0.25 mm 3.5 mm 728-114-00 10 pieces
Slot: 2 x 0.9 mm / 36
