Equipment
Equipment and accessories

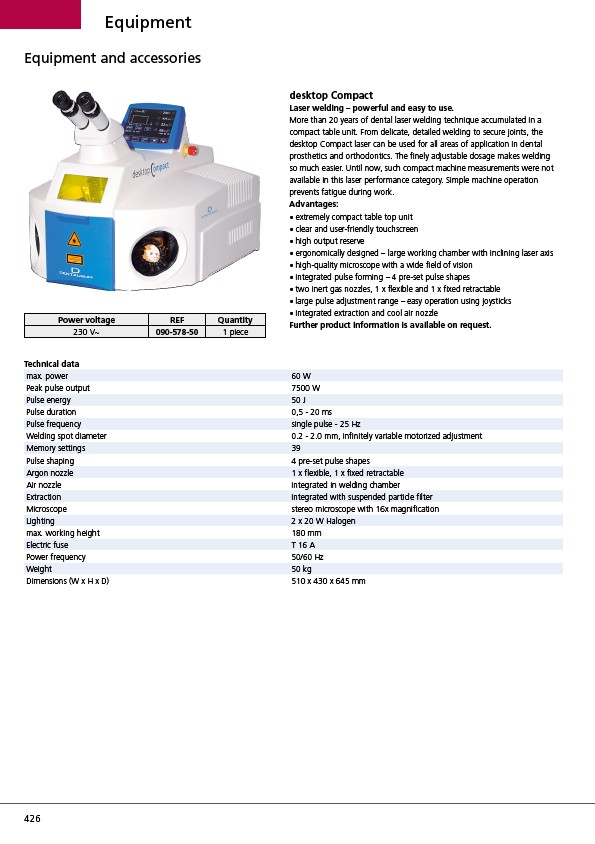

desktop Compact
Laser welding – powerful and easy to use.
More than 20 years of dental laser welding technique accumulated in a
compact table unit. From delicate, detailed welding to secure joints, the
desktop Compact laser can be used for all areas of application in dental
prosthetics and orthodontics. The finely adjustable dosage makes welding
so much easier. Until now, such compact machine measurements were not
available in this laser performance category. Simple machine operation
prevents fatigue during work.
Advantages:
• extremely compact table top unit
• clear and user-friendly touchscreen
• high output reserve
• ergonomically designed – large working chamber with inclining laser axis
• high-quality microscope with a wide field of vision
• integrated pulse forming – 4 pre-set pulse shapes
• two inert gas nozzles, 1 x flexible and 1 x fixed retractable
• large pulse adjustment range – easy operation using joysticks
• integrated extraction and cool air nozzle
Further product information is available on request.
Power voltage REF Quantity
230 V~ 090-578-50 1 piece
Technical data
max. power 60 W
Peak pulse output 7500 W
Pulse energy 50 J
Pulse duration 0,5 - 20 ms
Pulse frequency single pulse - 25 Hz
Welding spot diameter 0.2 - 2.0 mm, infinitely variable motorized adjustment
Memory settings 39
Pulse shaping 4 pre-set pulse shapes
Argon nozzle 1 x flexible, 1 x fixed retractable
Air nozzle integrated in welding chamber
Extraction integrated with suspended particle filter
Microscope stereo microscope with 16x magnification
Lighting 2 x 20 W Halogen
max. working height 180 mm
Electric fuse T 16 A
Power frequency 50/60 Hz
Weight 50 kg
Dimensions (W x H x D) 510 x 430 x 645 mm
