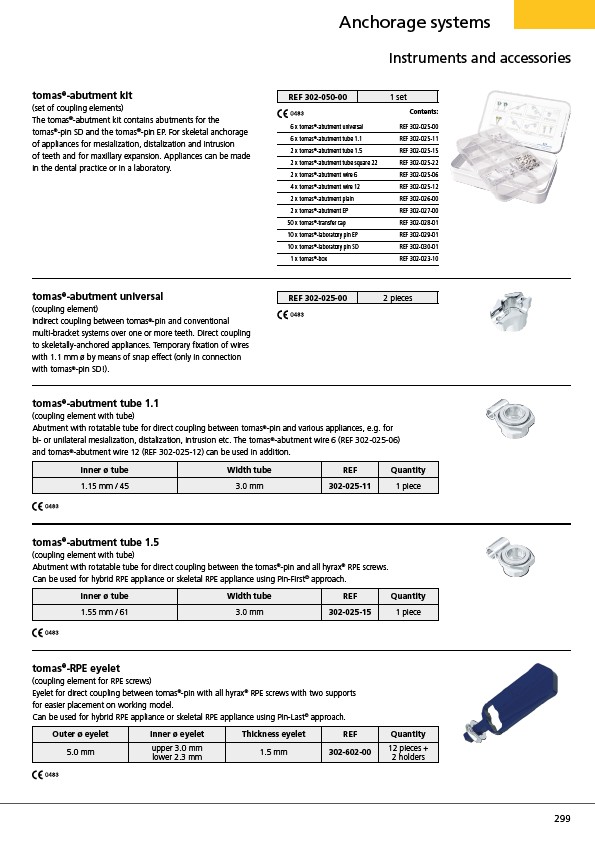

tomas®-abutment kit REF 302-050-00 1 set
tomas®-abutment universal REF 302-025-00 2 pieces
299
Anchorage systems
Instruments and accessories
(set of coupling elements)
The tomas®-abutment kit contains abutments for the
tomas®-pin SD and the tomas®-pin EP. For skeletal anchorage
of appliances for mesialization, distalization and intrusion
of teeth and for maxillary expansion. Appliances can be made
in the dental practice or in a laboratory.
Contents:
6 x tomas®-abutment universal REF 302-025-00
6 x tomas®-abutment tube 1.1 REF 302-025-11
2 x tomas®-abutment tube 1.5 REF 302-025-15
2 x tomas®-abutment tube square 22 REF 302-025-22
2 x tomas®-abutment wire 6 REF 302-025-06
4 x tomas®-abutment wire 12 REF 302-025-12
2 x tomas®-abutment plain REF 302-026-00
2 x tomas®-abutment EP REF 302-027-00
50 x tomas®-transfer cap REF 302-028-01
10 x tomas®-laboratory pin EP REF 302-029-01
10 x tomas®-laboratory pin SD REF 302-030-01
1 x tomas®-box REF 302-023-10
(coupling element)
Indirect coupling between tomas®-pin and conventional
multi-bracket systems over one or more teeth. Direct coupling
to skeletally-anchored appliances. Temporary fixation of wires
with 1.1 mm ø by means of snap effect (only in connection
with tomas®-pin SD!).
tomas®-abutment tube 1.1
(coupling element with tube)
Abutment with rotatable tube for direct coupling between tomas®-pin and various appliances, e.g. for
bi- or unilateral mesialization, distalization, intrusion etc. The tomas®-abutment wire 6 (REF 302-025-06)
and tomas®-abutment wire 12 (REF 302-025-12) can be used in addition.
Inner ø tube Width tube REF Quantity
1.15 mm / 45 3.0 mm 302-025-11 1 piece
tomas®-abutment tube 1.5
(coupling element with tube)
Abutment with rotatable tube for direct coupling between the tomas®-pin and all hyrax® RPE screws.
Can be used for hybrid RPE appliance or skeletal RPE appliance using Pin-First© approach.
Inner ø tube Width tube REF Quantity
1.55 mm / 61 3.0 mm 302-025-15 1 piece
(coupling element for RPE screws)
Eyelet for direct coupling between tomas®-pin with all hyrax® RPE screws with two supports
for easier placement on working model.
Can be used for hybrid RPE appliance or skeletal RPE appliance using Pin-Last© approach.
lower 2.3 mm 1.5 mm 302-602-00 12 pieces +
tomas®-RPE eyelet
Outer ø eyelet Inner ø eyelet Thickness eyelet REF Quantity
5.0 mm upper 3.0 mm
2 holders
