Equipment
Surveying equipment and accessories

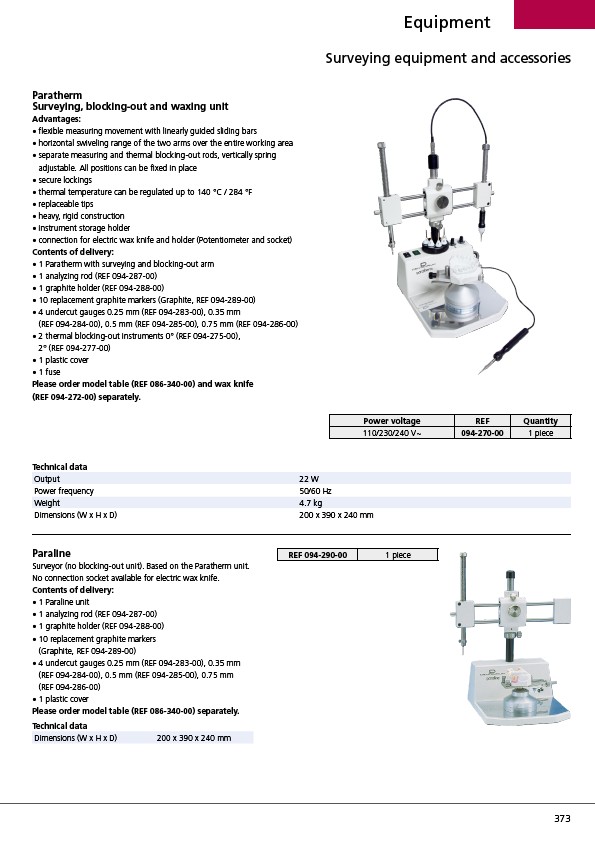

Paratherm
Surveying, blocking-out and waxing unit
Advantages:
• flexible measuring movement with linearly guided sliding bars
• horizontal swiveling range of the two arms over the entire working area
• separate measuring and thermal blocking-out rods, vertically spring
adjustable. All positions can be fixed in place
• secure lockings
• thermal temperature can be regulated up to 140 °C / 284 °F
• replaceable tips
• heavy, rigid construction
• instrument storage holder
• connection for electric wax knife and holder (Potentiometer and socket)
Contents of delivery:
• 1 Paratherm with surveying and blocking-out arm
• 1 analyzing rod (REF 094-287-00)
• 1 graphite holder (REF 094-288-00)
• 10 replacement graphite markers (Graphite, REF 094-289-00)
• 4 undercut gauges 0.25 mm (REF 094-283-00), 0.35 mm
(REF 094-284-00), 0.5 mm (REF 094-285-00), 0.75 mm (REF 094-286-00)
• 2 thermal blocking-out instruments 0° (REF 094-275-00),
2° (REF 094-277-00)
• 1 plastic cover
• 1 fuse
Please order model table (REF 086-340-00) and wax knife
(REF 094-272-00) separately.
Power voltage REF Quantity
110/230/240 V~ 094-270-00 1 piece
Technical data
Output 22 W
Power frequency 50/60 Hz
Weight 4.7 kg
Dimensions (W x H x D) 200 x 390 x 240 mm
Paraline
Surveyor (no blocking-out unit). Based on the Paratherm unit.
No connection socket available for electric wax knife.
Contents of delivery:
• 1 Paraline unit
• 1 analyzing rod (REF 094-287-00)
• 1 graphite holder (REF 094-288-00)
• 10 replacement graphite markers
(Graphite, REF 094-289-00)
• 4 undercut gauges 0.25 mm (REF 094-283-00), 0.35 mm
(REF 094-284-00), 0.5 mm (REF 094-285-00), 0.75 mm
(REF 094-286-00)
• 1 plastic cover
Please order model table (REF 086-340-00) separately.
Technical data
Dimensions (W x H x D) 200 x 390 x 240 mm
REF 094-290-00 1 piece
