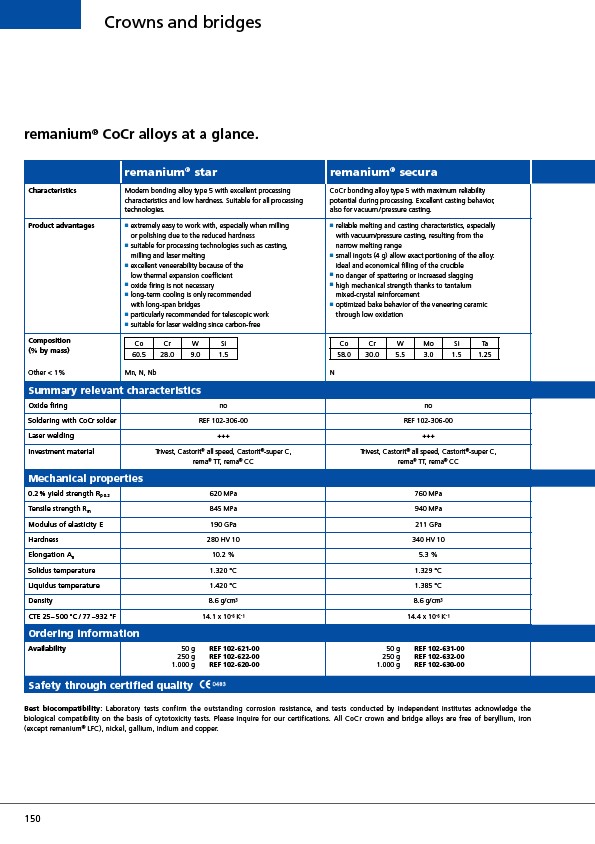

remanium® CoCr alloys at a glance.
remanium® star remanium® secura Characteristics Modern bonding alloy type 5 with excellent processing
characteristics and low hardness. Suitable for all processing
technologies.
CoCr bonding alloy type 5 with maximum reliability
potential during processing. Excellent casting behavior,
also for vacuum / pressure casting.
Product advantages extremely easy to work with, especially when milling
or polishing due to the reduced hardness
suitable for processing technologies such as casting,
milling and laser melting
excellent veneerability because of the
low thermal expansion coefficient
oxide firing is not necessary
long-term cooling is only recommended
with long-span bridges
particularly recommended for telescopic work
suitable for laser welding since carbon-free
reliable melting and casting characteristics, especially
with vacuum/pressure casting, resulting from the
narrow melting range
small ingots (4 g) allow exact portioning of the alloy:
ideal and economical filling of the crucible
no danger of spattering or increased slagging
high mechanical strength thanks to tantalum
mixed-crystal reinforcement
optimized bake behavior of the veneering ceramic
through low oxidation
Composition
(% by mass)
Co Cr W Si
60.5 28.0 9.0 1.5
Co Cr W Mo Si Ta
58.0 30.0 5.5 3.0 1.5 1.25
Other < 1% Mn, N, Nb N Summary relevant characteristics Oxide firing no no Soldering with CoCr solder REF 102-306-00 REF 102-306-00 Laser welding +++ +++ Investment material Trivest, Castorit® all speed, Castorit®-super C,
rema® TT, rema® CC
Trivest, Castorit® all speed, Castorit®-super C,
rema® TT, rema® CC
Mechanical properties 0.2 % yield strength Rp 0.2 620 MPa 760 MPa Tensile strength Rm 845 MPa 940 MPa Modulus of elasticity E 190 GPa 211 GPa Hardness 280 HV 10 340 HV 10 Elongation A5 10.2 % 5.3 % Solidus temperature 1.320 °C 1.329 °C Liquidus temperature 1.420 °C 1.385 °C Density 8.6 g/cm3 8.6 g/cm3 CTE 25 – 500 °C / 77 – 932 °F 14.1 x 10-6 K-1 14.4 x 10-6 K-1 Ordering information Availability 50 g REF 102-621-00
250 g REF 102-622-00
1.000 g REF 102-620-00
50 g REF 102-631-00
250 g REF 102-632-00
1.000 g REF 102-630-00
Safety through certified quality Best biocompatibility: Laboratory tests confirm the outstanding corrosion resistance, and tests conducted by independent institutes acknowledge the
biological compatibility on the basis of cytotoxicity tests. Please inquire for our certifications. All CoCr crown and bridge alloys are free of beryllium, iron
(except remanium® LFC), nickel, gallium, indium and copper.
150
Crowns and bridges
