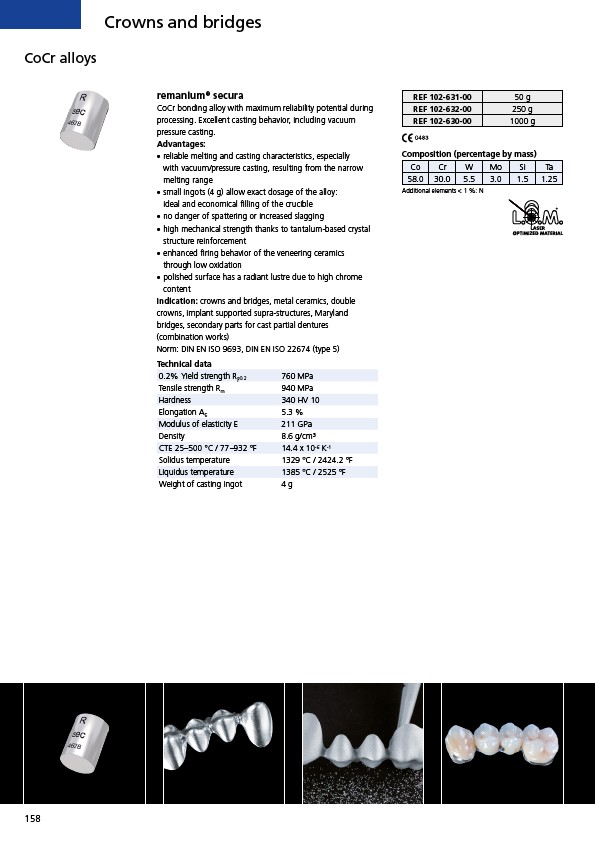

CoCr alloys
158
Crowns and bridges
remanium® secura
CoCr bonding alloy with maximum reliability potential during
processing. Excellent casting behavior, including vacuum
pressure casting.
Advantages:
• reliable melting and casting characteristics, especially
with vacuum/pressure casting, resulting from the narrow
melting range
• small ingots (4 g) allow exact dosage of the alloy:
ideal and economical filling of the crucible
• no danger of spattering or increased slagging
• high mechanical strength thanks to tantalum-based crystal
structure reinforcement
• enhanced firing behavior of the veneering ceramics
through low oxidation
• polished surface has a radiant lustre due to high chrome
content
Indication: crowns and bridges, metal ceramics, double
crowns, implant supported supra-structures, Maryland
bridges, secondary parts for cast partial dentures
(combination works)
Norm: DIN EN ISO 9693, DIN EN ISO 22674 (type 5)
Technical data
0.2% Yield strength Rp0.2 760 MPa
Tensile strength Rm 940 MPa
Hardness 340 HV 10
Elongation A5 5.3 %
Modulus of elasticity E 211 GPa
Density 8.6 g/cm³
CTE 25–500 °C / 77–932 °F 14.4 x 10-6 K-1
Solidus temperature 1329 °C / 2424.2 °F
Liquidus temperature 1385 °C / 2525 °F
Weight of casting ingot 4 g
REF 102-631-00 50 g
REF 102-632-00 250 g
REF 102-630-00 1000 g
Composition (percentage by mass)
Co Cr W Mo Si Ta
58.0 30.0 5.5 3.0 1.5 1.25
Additional elements < 1 %: N
