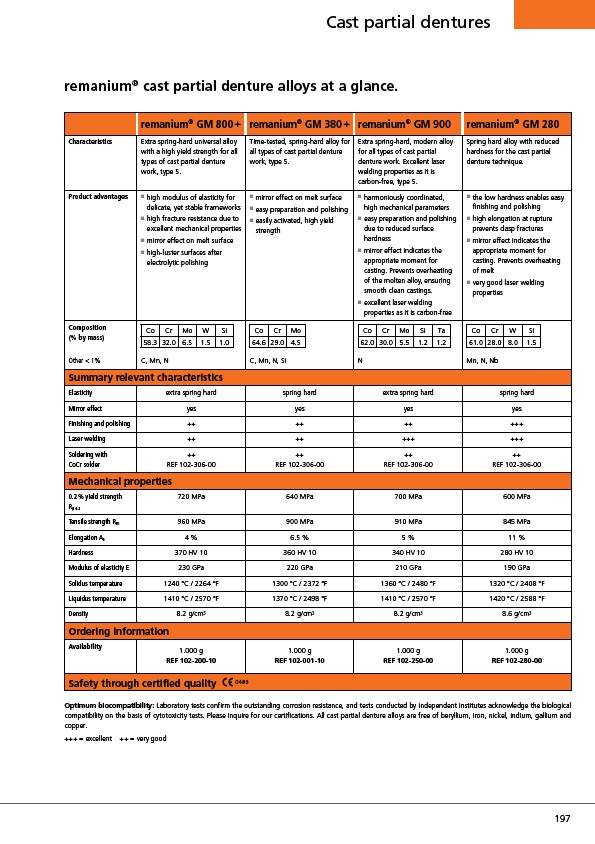

remanium® cast partial denture alloys at a glance.
remanium® GM 800 + remanium® GM 380 + remanium® GM 900 remanium® GM 280
Characteristics Extra spring-hard universal alloy
with a high yield strength for all
types of cast partial denture
work, type 5.
Time-tested, spring-hard alloy for
all types of cast partial denture
work, type 5.
Extra spring-hard, modern alloy
for all types of cast partial
denture work. Excellent laser
welding properties as it is
carbon-free, type 5.
Spring hard alloy with reduced
hardness for the cast partial
denture technique.
Product advantages high modulus of elasticity for
delicate, yet stable frameworks
high fracture resistance due to
excellent mechanical properties
mirror effect on melt surface
high-luster surfaces after
electrolytic polishing
mirror effect on melt surface
easy preparation and polishing
easily activated, high yield
strength
harmoniously coordinated,
high mechanical parameters
easy preparation and polishing
due to reduced surface
hardness
mirror effect indicates the
appropriate moment for
casting. Prevents overheating
of the molten alloy, ensuring
smooth clean castings.
excellent laser welding
properties as it is carbon-free
the low hardness enables easy
finishing and polishing
high elongation at rupture
prevents clasp fractures
mirror effect indicates the
appropriate moment for
casting. Prevents overheating
of melt
very good laser welding
properties
Composition
(% by mass)
Co Cr Mo W Si
58.3 32.0 6.5 1.5 1.0
Co Cr Mo
64.6 29.0 4.5
Co Cr Mo Si Ta
62.0 30.0 5.5 1.2 1.2
Co Cr W Si
61.0 28.0 8.0 1.5
Other < 1% C, Mn, N C, Mn, N, Si N Mn, N, Nb
Summary relevant characteristics
Elasticity extra spring hard spring hard extra spring hard spring hard
Mirror effect yes yes yes yes
Finishing and polishing ++ ++ ++ +++
Laser welding ++ ++ +++ +++
Soldering with
++
++
++
++
CoCr solder
REF 102-306-00
REF 102-306-00
REF 102-306-00
REF 102-306-00
Mechanical properties
0.2 % yield strength
Rp 0.2
720 MPa 640 MPa 700 MPa 600 MPa
Tensile strength Rm 960 MPa 900 MPa 910 MPa 845 MPa
Elongation A5 4 % 6.5 % 5 % 11 %
Hardness 370 HV 10 360 HV 10 340 HV 10 280 HV 10
Modulus of elasticity E 230 GPa 220 GPa 210 GPa 190 GPa
Solidus temperature 1240 °C / 2264 °F 1300 °C / 2372 °F 1360 °C / 2480 °F 1320 °C / 2408 °F
Liquidus temperature 1410 °C / 2570 °F 1370 °C / 2498 °F 1410 °C / 2570 °F 1420 °C / 2588 °F
Density 8.2 g/cm3 8.2 g/cm3 8.2 g/cm3 8.6 g/cm3
Ordering information
Availability
1.000 g
REF 102-200-10
1.000 g
REF 102-001-10
1.000 g
REF 102-250-00
1.000 g
REF 102-280-00
Safety through certified quality
Optimum biocompatibility: Laboratory tests confirm the outstanding corrosion resistance, and tests conducted by independent institutes acknowledge the biological
compatibility on the basis of cytotoxicity tests. Please inquire for our certifications. All cast partial denture alloys are free of beryllium, iron, nickel, indium, gallium and
copper.
+++ = excellent ++ = very good
