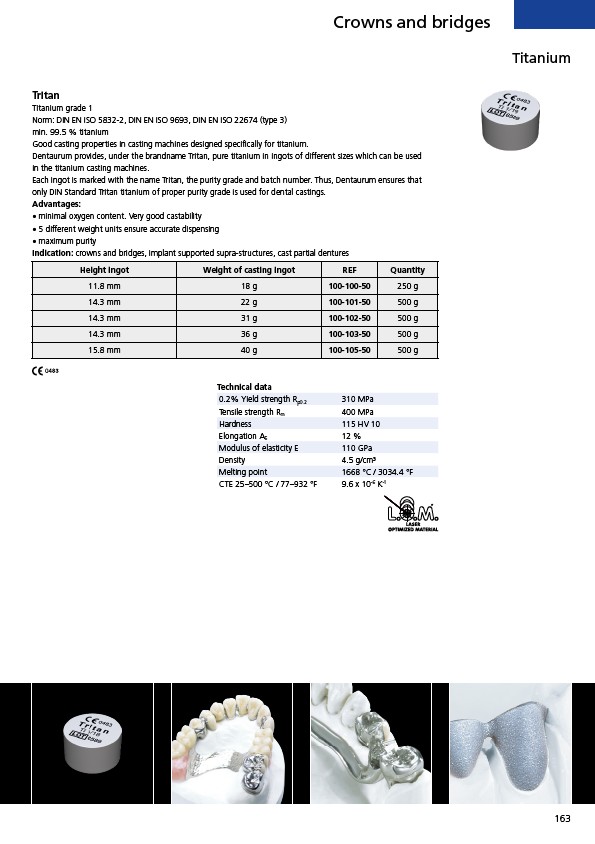

163
Crowns and bridges
Titanium
Tritan
Titanium grade 1
Norm: DIN EN ISO 5832-2, DIN EN ISO 9693, DIN EN ISO 22674 (type 3)
min. 99.5 % titanium
Good casting properties in casting machines designed specifically for titanium.
Dentaurum provides, under the brandname Tritan, pure titanium in ingots of different sizes which can be used
in the titanium casting machines.
Each ingot is marked with the name Tritan, the purity grade and batch number. Thus, Dentaurum ensures that
only DIN Standard Tritan titanium of proper purity grade is used for dental castings.
Advantages:
• minimal oxygen content. Very good castability
• 5 different weight units ensure accurate dispensing
• maximum purity
Indication: crowns and bridges, implant supported supra-structures, cast partial dentures
Height ingot Weight of casting ingot REF Quantity
11.8 mm 18 g 100-100-50 250 g
14.3 mm 22 g 100-101-50 500 g
14.3 mm 31 g 100-102-50 500 g
14.3 mm 36 g 100-103-50 500 g
15.8 mm 40 g 100-105-50 500 g
Technical data
0.2% Yield strength Rp0.2 310 MPa
Tensile strength Rm 400 MPa
Hardness 115 HV 10
Elongation A5 12 %
Modulus of elasticity E 110 GPa
Density 4.5 g/cm³
Melting point 1668 °C / 3034.4 °F
CTE 25–500 °C / 77–932 °F 9.6 x 10-6 K-1
