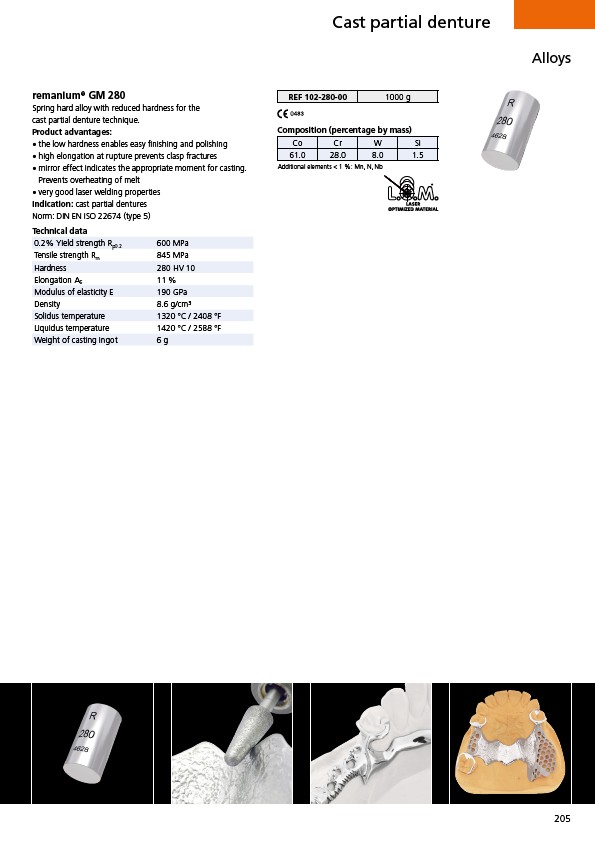

Cast partial denture
Alloys
remanium® GM 280
Spring hard alloy with reduced hardness for the
cast partial denture technique.
Product advantages:
• the low hardness enables easy finishing and polishing
• high elongation at rupture prevents clasp fractures
• mirror effect indicates the appropriate moment for casting.
Prevents overheating of melt
• very good laser welding properties
Indication: cast partial dentures
Norm: DIN EN ISO 22674 (type 5)
Technical data
0.2% Yield strength Rp0.2 600 MPa
Tensile strength Rm 845 MPa
Hardness 280 HV 10
Elongation A5 11 %
Modulus of elasticity E 190 GPa
Density 8.6 g/cm³
Solidus temperature 1320 °C / 2408 °F
Liquidus temperature 1420 °C / 2588 °F
Weight of casting ingot 6 g
REF 102-280-00 1000 g
Composition (percentage by mass)
Co Cr W Si
61.0 28.0 8.0 1.5
Additional elements < 1 %: Mn, N, Nb
