Zirconium oxide blanks
134
CAD/CAM materials

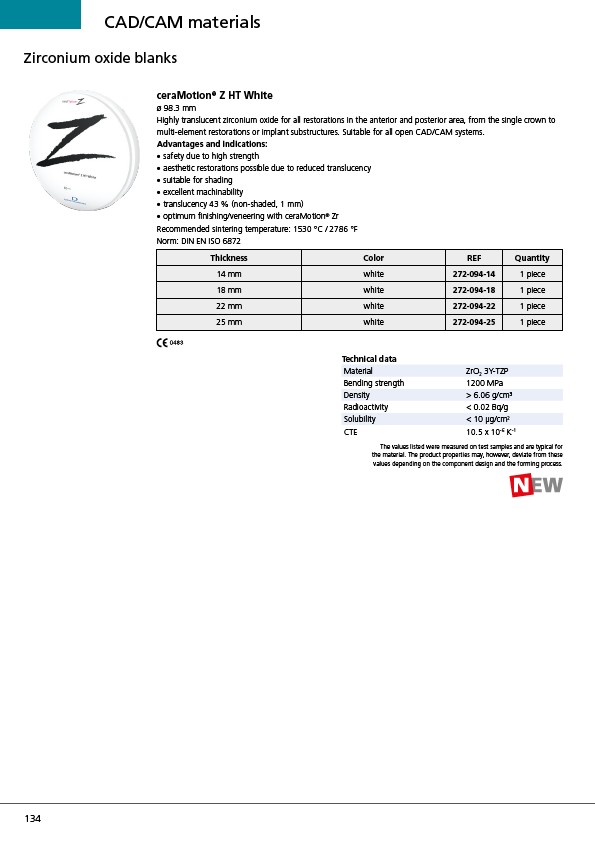

ceraMotion® Z HT White
ø 98.3 mm
Highly translucent zirconium oxide for all restorations in the anterior and posterior area, from the single crown to
multi-element restorations or implant substructures. Suitable for all open CAD/CAM systems.
Advantages and indications:
• safety due to high strength
• aesthetic restorations possible due to reduced translucency
• suitable for shading
• excellent machinability
• translucency 43 % (non-shaded, 1 mm)
• optimum finishing/veneering with ceraMotion® Zr
Recommended sintering temperature: 1530 °C / 2786 °F
Norm: DIN EN ISO 6872
Thickness Color REF Quantity
14 mm white 272-094-14 1 piece
18 mm white 272-094-18 1 piece
22 mm white 272-094-22 1 piece
25 mm white 272-094-25 1 piece
Technical data
Material ZrO2 3Y-TZP
Bending strength 1200 MPa
Density > 6.06 g/cm³
Radioactivity < 0.02 Bq/g
Solubility < 10 μg/cm2
CTE 10.5 x 10-6 K-1
The values listed were measured on test samples and are typical for
the material. The product properties may, however, deviate from these
values depending on the component design and the forming process.
