Titanium
164
Crowns and bridges

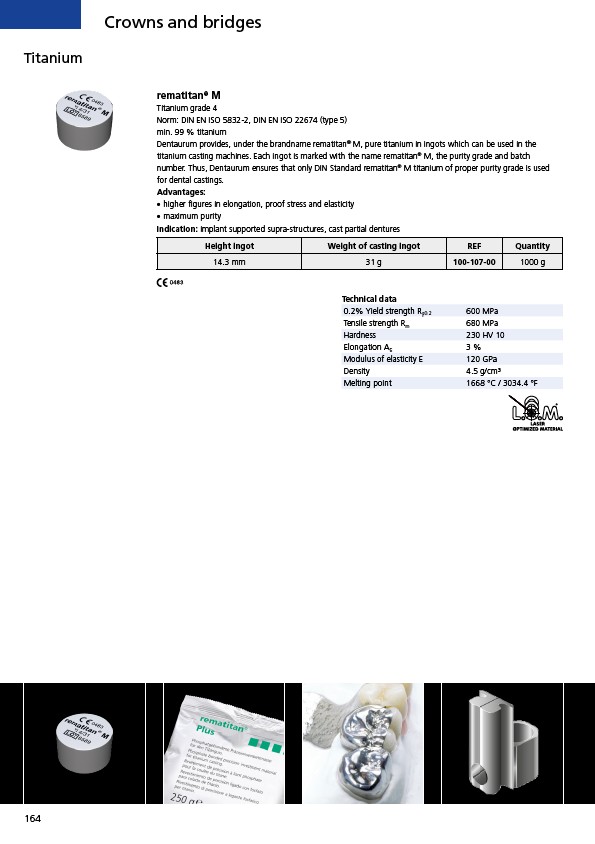

rematitan® M
Titanium grade 4
Norm: DIN EN ISO 5832-2, DIN EN ISO 22674 (type 5)
min. 99 % titanium
Dentaurum provides, under the brandname rematitan® M, pure titanium in ingots which can be used in the
titanium casting machines. Each ingot is marked with the name rematitan® M, the purity grade and batch
number. Thus, Dentaurum ensures that only DIN Standard rematitan® M titanium of proper purity grade is used
for dental castings.
Advantages:
• higher figures in elongation, proof stress and elasticity
• maximum purity
Indication: implant supported supra-structures, cast partial dentures
Height ingot Weight of casting ingot REF Quantity
14.3 mm 31 g 100-107-00 1000 g
Technical data
0.2% Yield strength Rp0.2 600 MPa
Tensile strength Rm 680 MPa
Hardness 230 HV 10
Elongation A5 3 %
Modulus of elasticity E 120 GPa
Density 4.5 g/cm³
Melting point 1668 °C / 3034.4 °F
