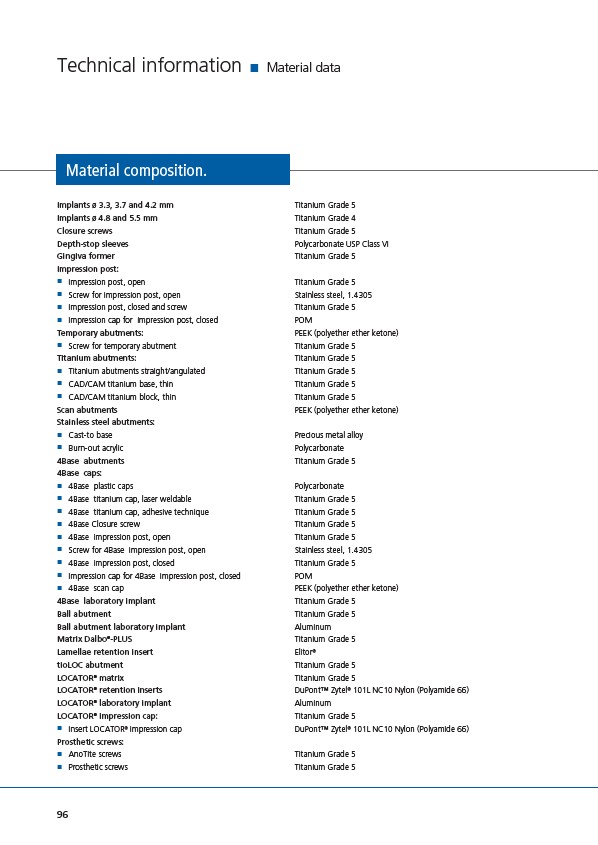

Technical information Material data
Material composition.
Implants ø 3.3, 3.7 and 4.2 mm Titanium Grade 5
Implants ø 4.8 and 5.5 mm Titanium Grade 4
Closure screws Titanium Grade 5
Depth-stop sleeves Polycarbonate USP Class VI
Gingiva former Titanium Grade 5
Impression post:
„ Impression post, open Titanium Grade 5
„ Screw for impression post, open Stainless steel, 1.4305
„ Impression post, closed and screw Titanium Grade 5
„ Impression cap for impression post, closed POM
Temporary abutments: PEEK (polyether ether ketone)
„ Screw for temporary abutment Titanium Grade 5
Titanium abutments: Titanium Grade 5
„ Titanium abutments straight/angulated Titanium Grade 5
„ CAD/CAM titanium base, thin Titanium Grade 5
„ CAD/CAM titanium block, thin Titanium Grade 5
Scan abutments PEEK (polyether ether ketone)
Stainless steel abutments:
„ Cast-to base Precious metal alloy
„ Burn-out acrylic Polycarbonate
4Base abutments Titanium Grade 5
4Base caps:
„ 4Base plastic caps Polycarbonate
„ 4Base titanium cap, laser weldable Titanium Grade 5
„ 4Base titanium cap, adhesive technique Titanium Grade 5
„ 4Base Closure screw Titanium Grade 5
„ 4Base impression post, open Titanium Grade 5
„ Screw for 4Base impression post, open Stainless steel, 1.4305
„ 4Base impression post, closed Titanium Grade 5
„ Impression cap for 4Base impression post, closed POM
„ 4Base scan cap PEEK (polyether ether ketone)
4Base laboratory implant Titanium Grade 5
Ball abutment Titanium Grade 5
Ball abutment laboratory implant Aluminum
Matrix Dalbo®-PLUS Titanium Grade 5
Lamellae retention insert Elitor®
tioLOC abutment Titanium Grade 5
LOCATOR® matrix Titanium Grade 5
LOCATOR® retention inserts DuPont™ Zytel® 101L NC10 Nylon (Polyamide 66)
LOCATOR® laboratory implant Aluminum
LOCATOR® impression cap: Titanium Grade 5
„ Insert LOCATOR® impression cap DuPont™ Zytel® 101L NC10 Nylon (Polyamide 66)
Prosthetic screws:
„ AnoTite screws Titanium Grade 5
„ Prosthetic screws Titanium Grade 5
