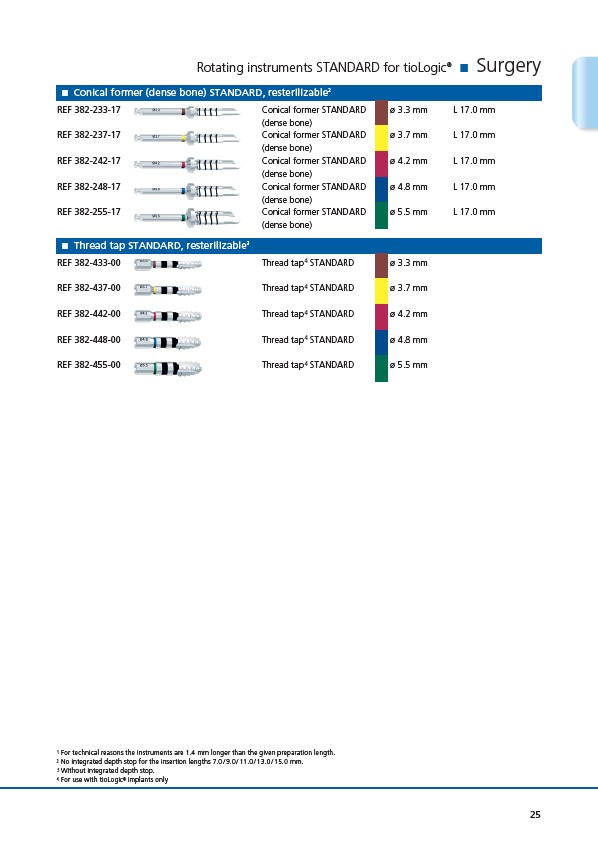

Rotating instruments STANDARD for tioLogic® Surgery
Conical former (dense bone) STANDARD, resterilizable2
REF 382-233-17 Conical former STANDARD
(dense bone)
1 For technical reasons the instruments are 1.4 mm longer than the given preparation length.
2 No integrated depth stop for the insertion lengths 7.0 / 9.0 / 11.0 / 13.0 / 15.0 mm.
3 Without integrated depth stop.
4 For use with tioLogic® implants only
ø 3.3 mm L 17.0 mm
REF 382-237-17 Conical former STANDARD
(dense bone)
ø 3.7 mm L 17.0 mm
REF 382-242-17 Conical former STANDARD
(dense bone)
ø 4.2 mm L 17.0 mm
REF 382-248-17 Conical former STANDARD
(dense bone)
ø 4.8 mm L 17.0 mm
REF 382-255-17 Conical former STANDARD
(dense bone)
ø 5.5 mm L 17.0 mm
Thread tap STANDARD, resterilizable3
REF 382-433-00 Thread tap 4 STANDARD ø 3.3 mm
REF 382-437-00 Thread tap 4 STANDARD ø 3.7 mm
REF 382-442-00 Thread tap 4 STANDARD ø 4.2 mm
REF 382-448-00 Thread tap 4 STANDARD ø 4.8 mm
REF 382-455-00 Thread tap 4 STANDARD ø 5.5 mm
