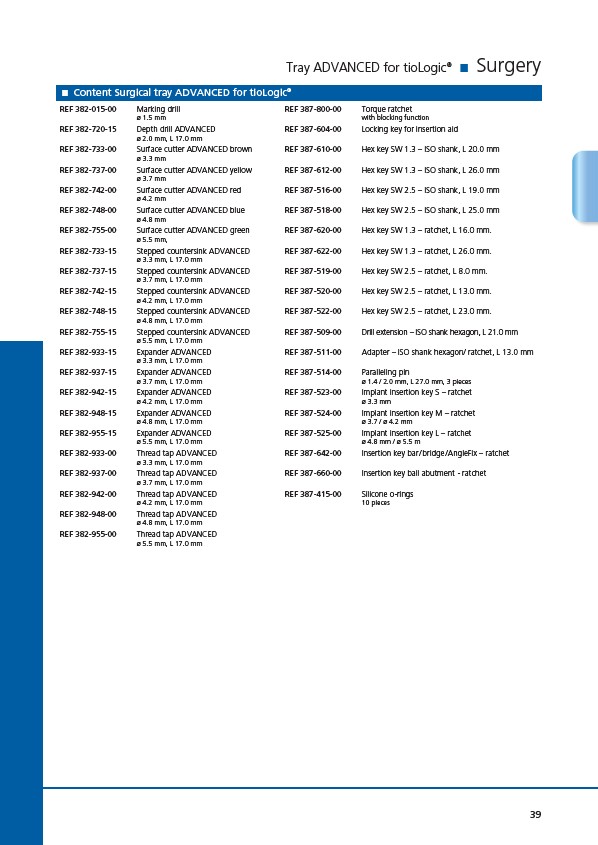

Tray ADVANCED for tioLogic® Surgery
Content Surgical tray ADVANCED for tioLogic®
REF 382-015-00 Marking drill
ø 1.5 mm
REF 387-800-00 Torque ratchet
with blocking function
REF 382-720-15 Depth drill ADVANCED
ø 2.0 mm, L 17.0 mm
REF 387-604-00 Locking key for insertion aid
REF 382-733-00 Surface cutter ADVANCED brown
ø 3.3 mm
REF 387-610-00 Hex key SW 1.3 – ISO shank, L 20.0 mm
REF 382-737-00 Surface cutter ADVANCED yellow
ø 3.7 mm
REF 387-612-00 Hex key SW 1.3 – ISO shank, L 26.0 mm
REF 382-742-00 Surface cutter ADVANCED red
ø 4.2 mm
REF 387-516-00 Hex key SW 2.5 – ISO shank, L 19.0 mm
REF 382-748-00 Surface cutter ADVANCED blue
ø 4.8 mm
REF 387-518-00 Hex key SW 2.5 – ISO shank, L 25.0 mm
REF 382-755-00 Surface cutter ADVANCED green
ø 5.5 mm,
REF 387-620-00 Hex key SW 1.3 – ratchet, L 16.0 mm.
REF 382-733-15 Stepped countersink ADVANCED
ø 3.3 mm, L 17.0 mm
REF 387-622-00 Hex key SW 1.3 – ratchet, L 26.0 mm.
REF 382-737-15 Stepped countersink ADVANCED
ø 3.7 mm, L 17.0 mm
REF 387-519-00 Hex key SW 2.5 – ratchet, L 8.0 mm.
REF 382-742-15 Stepped countersink ADVANCED
ø 4.2 mm, L 17.0 mm
REF 387-520-00 Hex key SW 2.5 – ratchet, L 13.0 mm.
REF 382-748-15 Stepped countersink ADVANCED
ø 4.8 mm, L 17.0 mm
REF 387-522-00 Hex key SW 2.5 – ratchet, L 23.0 mm.
REF 382-755-15 Stepped countersink ADVANCED
ø 5.5 mm, L 17.0 mm
REF 387-509-00 Drill extension – ISO shank hexagon, L 21.0 mm
REF 382-933-15 Expander ADVANCED
ø 3.3 mm, L 17.0 mm
REF 387-511-00 Adapter – ISO shank hexagon/ ratchet, L 13.0 mm
REF 382-937-15 Expander ADVANCED
ø 3.7 mm, L 17.0 mm
REF 387-514-00 Paralleling pin
ø 1.4 / 2.0 mm, L 27.0 mm, 3 pieces
REF 382-942-15 Expander ADVANCED
ø 4.2 mm, L 17.0 mm
REF 387-523-00 Implant insertion key S – ratchet
ø 3.3 mm
REF 382-948-15 Expander ADVANCED
ø 4.8 mm, L 17.0 mm
REF 387-524-00 Implant insertion key M – ratchet
ø 3.7 / ø 4.2 mm
REF 382-955-15 Expander ADVANCED
ø 5.5 mm, L 17.0 mm
REF 387-525-00 Implant insertion key L – ratchet
ø 4.8 mm / ø 5.5 m
REF 382-933-00 Thread tap ADVANCED
ø 3.3 mm, L 17.0 mm
REF 387-642-00 Insertion key bar / bridge / AngleFix – ratchet
REF 382-937-00 Thread tap ADVANCED
ø 3.7 mm, L 17.0 mm
REF 387-660-00 Insertion key ball abutment - ratchet
REF 382-942-00 Thread tap ADVANCED
ø 4.2 mm, L 17.0 mm
REF 387-415-00 Silicone o-rings
10 pieces
REF 382-948-00 Thread tap ADVANCED
ø 4.8 mm, L 17.0 mm
REF 382-955-00 Thread tap ADVANCED
ø 5.5 mm, L 17.0 mm
