brown ø 3.3 mm
yellow ø 3.7 mm
red ø 4.2 mm
blue ø 4.8 mm
green ø 5.5 mm
1
2
3

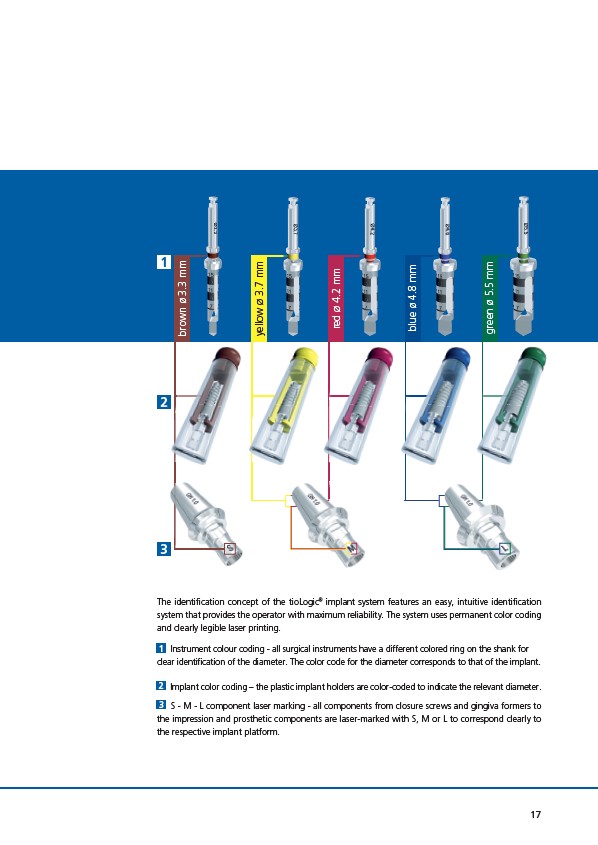

The identifi cation concept of the tioLogic® implant system features an easy, intuitive identifi cation
system that provides the operator with maximum reliability. The system uses permanent color coding
and clearly legible laser printing.
1 Instrument colour coding - all surgical instruments have a different colored ring on the shank for
clear identification of the diameter. The color code for the diameter corresponds to that of the implant.
2 Implant color coding – the plastic implant holders are color-coded to indicate the relevant diameter.
3 S - M - L component laser marking - all components from closure screws and gingiva formers to
the impression and prosthetic components are laser-marked with S, M or L to correspond clearly to
the respective implant platform.
