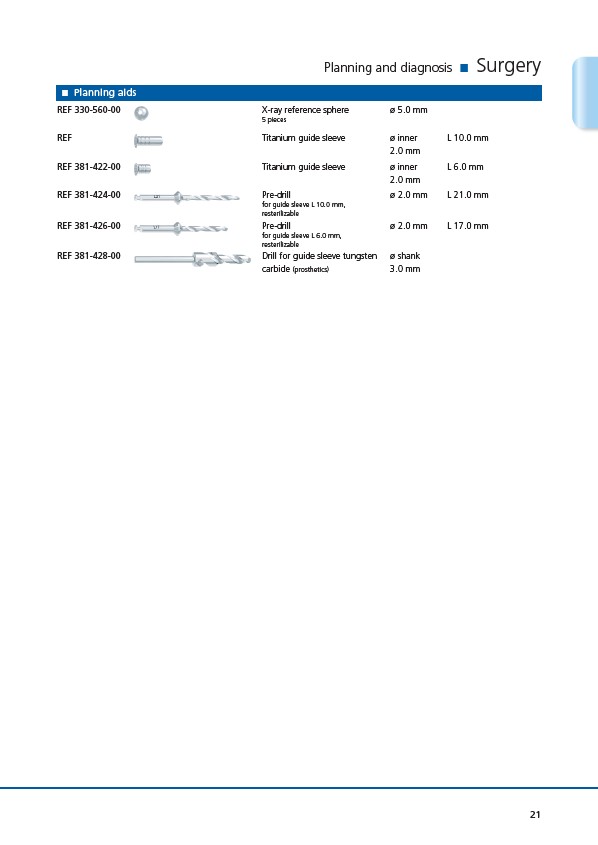

Planning and diagnosis Surgery
Planning aids
REF 330-560-00 X-ray reference sphere
5 pieces
ø 5.0 mm
REF Titanium guide sleeve ø inner
2.0 mm
L 10.0 mm
REF 381-422-00 Titanium guide sleeve ø inner
2.0 mm
L 6.0 mm
REF 381-424-00 Pre-drill
for guide sleeve L 10.0 mm,
resterilizable
ø 2.0 mm L 21.0 mm
REF 381-426-00 Pre-drill
for guide sleeve L 6.0 mm,
resterilizable
ø 2.0 mm L 17.0 mm
REF 381-428-00 Drill for guide sleeve tungsten
carbide (prosthetics)
ø shank
3.0 mm
21
