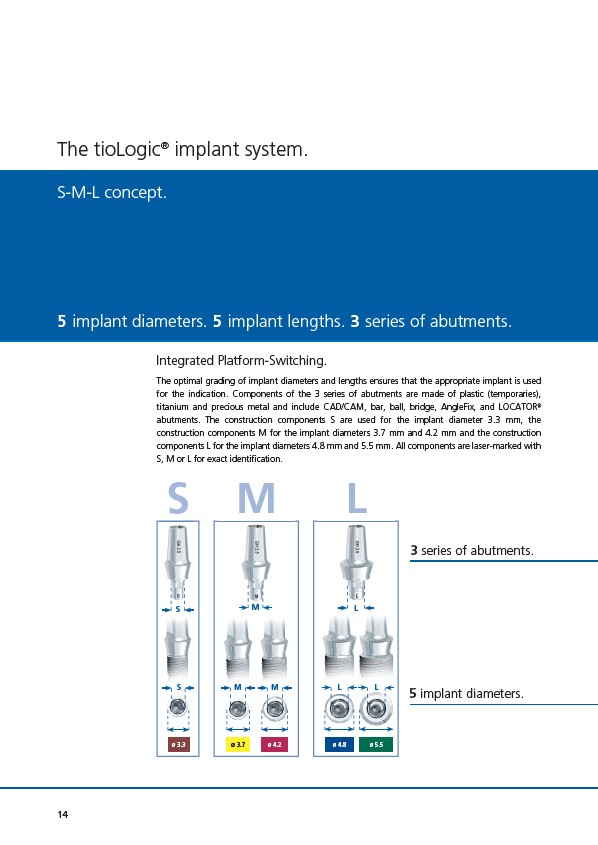

The tioLogic® implant system.
S-M-L concept.
5 implant diameters. 5 implant lengths. 3 series of abutments.
Integrated Platform-Switching.
The optimal grading of implant diameters and lengths ensures that the appropriate implant is used
for the indication. Components of the 3 series of abutments are made of plastic (temporaries),
titanium and precious metal and include CAD/CAM, bar, ball, bridge, AngleFix, and LOCATOR®
abutments. The construction components S are used for the implant diameter 3.3 mm, the
construction components M for the implant diameters 3.7 mm and 4.2 mm and the construction
components L for the implant diameters 4.8 mm and 5.5 mm. All components are laser-marked with
S, M or L for exact identifi cation.
M L
L
L L
ø 4.8 ø 5.5
3 series of abutments.
5 implant diameters.
S
S
S
ø 3.3
M
M M
ø 3.7 ø 4.2
