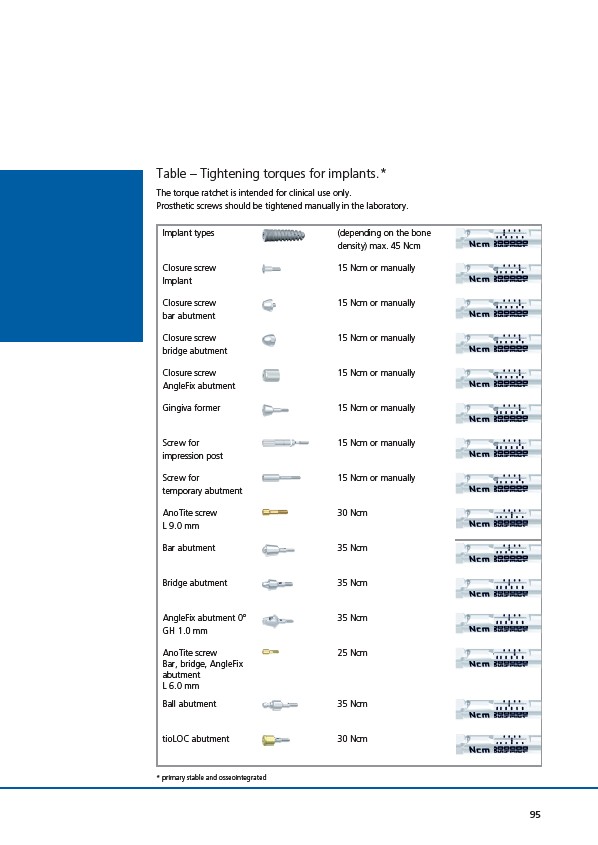

Table – Tightening torques for implants.*
The torque ratchet is intended for clinical use only.
Prosthetic screws should be tightened manually in the laboratory.
Implant types (depending on the bone
density) max. 45 Ncm
Closure screw
Implant
15 Ncm or manually
Closure screw
bar abutment
15 Ncm or manually
Closure screw
bridge abutment
15 Ncm or manually
Closure screw
AngleFix abutment
15 Ncm or manually
Gingiva former 15 Ncm or manually
Screw for
impression post
15 Ncm or manually
Screw for
temporary abutment
15 Ncm or manually
AnoTite screw
L 9.0 mm
30 Ncm
Bar abutment 35 Ncm
Bridge abutment 35 Ncm
AngleFix abutment 0º
GH 1.0 mm
35 Ncm
AnoTite screw
Bar, bridge, AngleFix
abutment
L 6.0 mm
25 Ncm
Ball abutment 35 Ncm
tioLOC abutment 30 Ncm
* primary stable and osseointegrated
95
