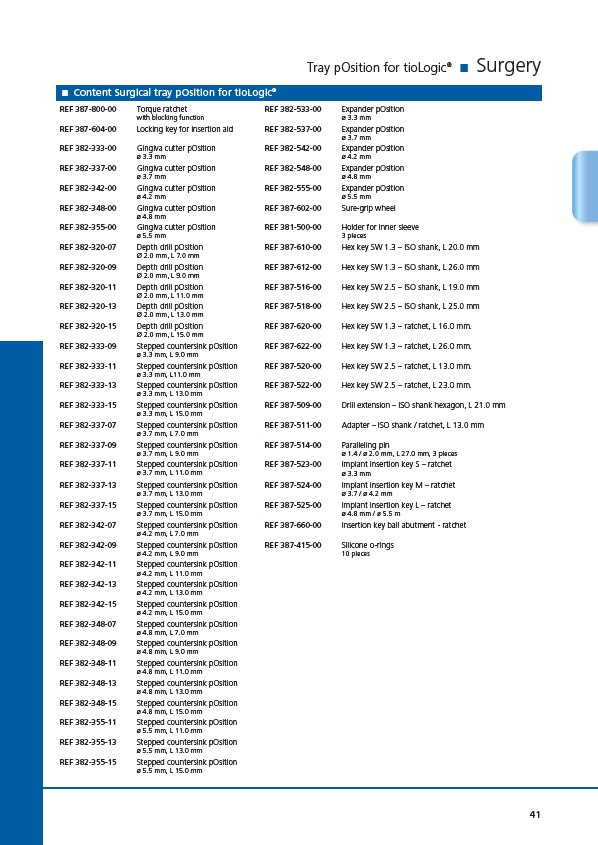

Tray pOsition for tioLogic® Surgery
Content Surgical tray pOsition for tioLogic®
REF 387-800-00 Torque ratchet
with blocking function
REF 382-533-00 Expander pOsition
ø 3.3 mm
REF 387-604-00 Locking key for insertion aid REF 382-537-00 Expander pOsition
ø 3.7 mm
REF 382-333-00 Gingiva cutter pOsition
ø 3.3 mm
REF 382-542-00 Expander pOsition
ø 4.2 mm
REF 382-337-00 Gingiva cutter pOsition
ø 3.7 mm
REF 382-548-00 Expander pOsition
ø 4.8 mm
REF 382-342-00 Gingiva cutter pOsition
ø 4.2 mm
REF 382-555-00 Expander pOsition
ø 5.5 mm
REF 382-348-00 Gingiva cutter pOsition
ø 4.8 mm
REF 387-602-00 Sure-grip wheel
REF 382-355-00 Gingiva cutter pOsition
ø 5.5 mm
REF 381-500-00 Holder for inner sleeve
3 pieces
REF 382-320-07 Depth drill pOsition
Ø 2.0 mm, L 7.0 mm
REF 387-610-00 Hex key SW 1.3 – ISO shank, L 20.0 mm
REF 382-320-09 Depth drill pOsition
Ø 2.0 mm, L 9.0 mm
REF 387-612-00 Hex key SW 1.3 – ISO shank, L 26.0 mm
REF 382-320-11 Depth drill pOsition
Ø 2.0 mm, L 11.0 mm
REF 387-516-00 Hex key SW 2.5 – ISO shank, L 19.0 mm
REF 382-320-13 Depth drill pOsition
Ø 2.0 mm, L 13.0 mm
REF 387-518-00 Hex key SW 2.5 – ISO shank, L 25.0 mm
REF 382-320-15 Depth drill pOsition
Ø 2.0 mm, L 15.0 mm
REF 387-620-00 Hex key SW 1.3 – ratchet, L 16.0 mm.
REF 382-333-09 Stepped countersink pOsition
ø 3.3 mm, L 9.0 mm
REF 387-622-00 Hex key SW 1.3 – ratchet, L 26.0 mm.
REF 382-333-11 Stepped countersink pOsition
ø 3.3 mm, L11.0 mm
REF 387-520-00 Hex key SW 2.5 – ratchet, L 13.0 mm.
REF 382-333-13 Stepped countersink pOsition
ø 3.3 mm, L 13.0 mm
REF 387-522-00 Hex key SW 2.5 – ratchet, L 23.0 mm.
REF 382-333-15 Stepped countersink pOsition
ø 3.3 mm, L 15.0 mm
REF 387-509-00 Drill extension – ISO shank hexagon, L 21.0 mm
REF 382-337-07 Stepped countersink pOsition
ø 3.7 mm, L 7.0 mm
REF 387-511-00 Adapter – ISO shank / ratchet, L 13.0 mm
REF 382-337-09 Stepped countersink pOsition
ø 3.7 mm, L 9.0 mm
REF 387-514-00 Paralleling pin
ø 1.4 / ø 2.0 mm, L 27.0 mm, 3 pieces
REF 382-337-11 Stepped countersink pOsition
ø 3.7 mm, L 11.0 mm
REF 387-523-00 Implant insertion key S – ratchet
ø 3.3 mm
REF 382-337-13 Stepped countersink pOsition
ø 3.7 mm, L 13.0 mm
REF 387-524-00 Implant insertion key M – ratchet
ø 3.7 / ø 4.2 mm
REF 382-337-15 Stepped countersink pOsition
ø 3.7 mm, L 15.0 mm
REF 387-525-00 Implant insertion key L – ratchet
ø 4.8 mm / ø 5.5 m
REF 382-342-07 Stepped countersink pOsition
ø 4.2 mm, L 7.0 mm
REF 387-660-00 Insertion key ball abutment - ratchet
REF 382-342-09 Stepped countersink pOsition
ø 4.2 mm, L 9.0 mm
REF 387-415-00 Silicone o-rings
10 pieces
REF 382-342-11 Stepped countersink pOsition
ø 4.2 mm, L 11.0 mm
REF 382-342-13 Stepped countersink pOsition
ø 4.2 mm, L 13.0 mm
REF 382-342-15 Stepped countersink pOsition
ø 4.2 mm, L 15.0 mm
REF 382-348-07 Stepped countersink pOsition
ø 4.8 mm, L 7.0 mm
REF 382-348-09 Stepped countersink pOsition
ø 4.8 mm, L 9.0 mm
REF 382-348-11 Stepped countersink pOsition
ø 4.8 mm, L 11.0 mm
REF 382-348-13 Stepped countersink pOsition
ø 4.8 mm, L 13.0 mm
REF 382-348-15 Stepped countersink pOsition
ø 4.8 mm, L 15.0 mm
REF 382-355-11 Stepped countersink pOsition
ø 5.5 mm, L 11.0 mm
REF 382-355-13 Stepped countersink pOsition
ø 5.5 mm, L 13.0 mm
REF 382-355-15 Stepped countersink pOsition
ø 5.5 mm, L 15.0 mm
41
