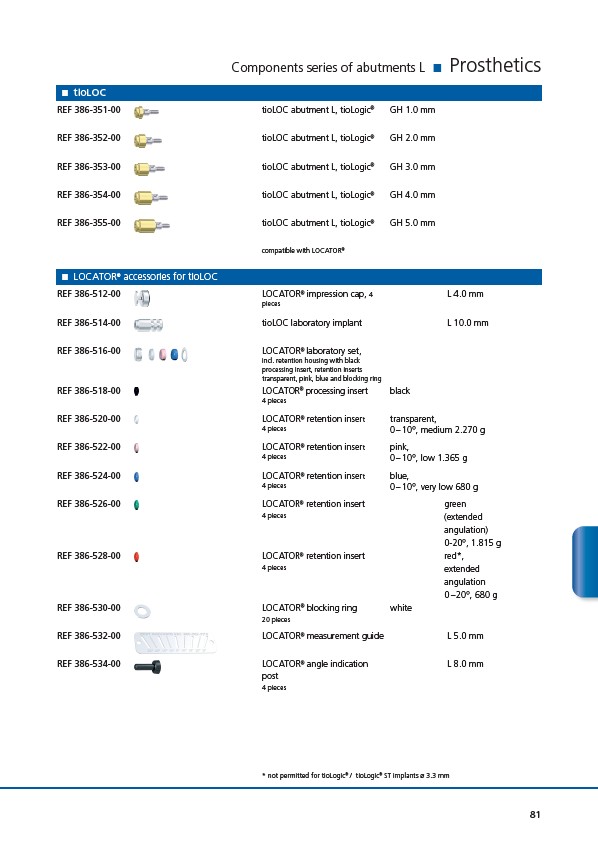

Components series of abutments L Prosthetics
tioLOC
REF 386-351-00 tioLOC abutment L, tioLogic® GH 1.0 mm
REF 386-352-00 tioLOC abutment L, tioLogic® GH 2.0 mm
REF 386-353-00 tioLOC abutment L, tioLogic® GH 3.0 mm
REF 386-354-00 tioLOC abutment L, tioLogic® GH 4.0 mm
REF 386-355-00 tioLOC abutment L, tioLogic® GH 5.0 mm
LOCATOR® accessories for tioLOC
REF 386-512-00 LOCATOR® impression cap, 4
pieces
L 4.0 mm
REF 386-514-00 tioLOC laboratory implant L 10.0 mm
REF 386-516-00 LOCATOR® laboratory set,
incl. retention housing with black
processing insert, retention inserts
transparent, pink, blue and blocking ring
REF 386-518-00 LOCATOR® processing insert
4 pieces
black
REF 386-520-00 LOCATOR® retention insert
4 pieces
transparent,
0 – 10°, medium 2.270 g
REF 386-522-00 LOCATOR® retention insert
4 pieces
pink,
0 – 10°, low 1.365 g
REF 386-524-00 LOCATOR® retention insert
4 pieces
blue,
0 – 10°, very low 680 g
REF 386-526-00 LOCATOR® retention insert
4 pieces
green
(extended
angulation)
0-20°, 1.815 g
REF 386-528-00 LOCATOR® retention insert
4 pieces
red*,
extended
angulation
0 – 20°, 680 g
REF 386-530-00 LOCATOR® blocking ring
20 pieces
white
REF 386-532-00 LOCATOR® measurement guide L 5.0 mm
REF 386-534-00 LOCATOR® angle indication
post
4 pieces
L 8.0 mm
compatible with LOCATOR®
* not permitted for tioLogic® / tioLogic® ST implants ø 3.3 mm
