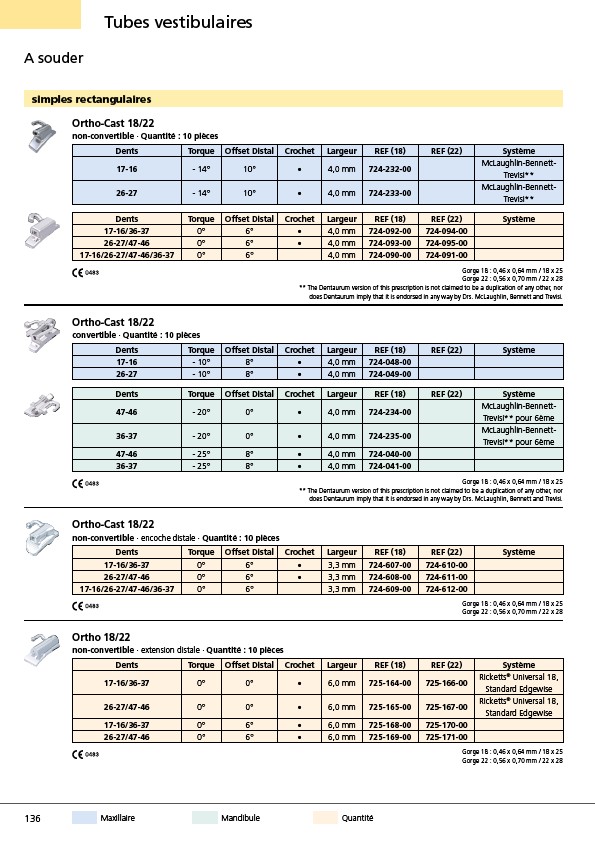

136
Tubes vestibulaires
Ortho-Cast 18/22
Ortho-Cast 18/22
Ortho-Cast 18/22
Ortho 18/22
Maxillaire Mandibule Quantité
A souder
non-convertible ∙ Quantité : 10 pièces
Dents Torque Offset Distal Crochet Largeur REF (18) REF (22) Système
17-16 - 14° 10° • 4,0 mm 724-232-00
McLaughlin-Bennett-
Trevisi**
26-27 - 14° 10° • 4,0 mm 724-233-00
McLaughlin-Bennett-
Trevisi**
Dents Torque Offset Distal Crochet Largeur REF (18) REF (22) Système
17-16/36-37 0° 6° • 4,0 mm 724-092-00 724-094-00
26-27/47-46 0° 6° • 4,0 mm 724-093-00 724-095-00
17-16/26-27/47-46/36-37 0° 6° 4,0 mm 724-090-00 724-091-00
Gorge 18 : 0,46 x 0,64 mm / 18 x 25
Gorge 22 : 0,56 x 0,70 mm / 22 x 28
** The Dentaurum version of this prescription is not claimed to be a duplication of any other, nor
does Dentaurum imply that it is endorsed in any way by Drs. McLaughlin, Bennett and Trevisi.
simples rectangulaires
convertible ∙ Quantité : 10 pièces
Dents Torque Offset Distal Crochet Largeur REF (18) REF (22) Système
17-16 - 10° 8° • 4,0 mm 724-048-00
26-27 - 10° 8° • 4,0 mm 724-049-00
Dents Torque Offset Distal Crochet Largeur REF (18) REF (22) Système
47-46 - 20° 0° • 4,0 mm 724-234-00
McLaughlin-Bennett-
Trevisi** pour 6ème
36-37 - 20° 0° • 4,0 mm 724-235-00
McLaughlin-Bennett-
Trevisi** pour 6ème
47-46 - 25° 8° • 4,0 mm 724-040-00
36-37 - 25° 8° • 4,0 mm 724-041-00
Gorge 18 : 0,46 x 0,64 mm / 18 x 25
** The Dentaurum version of this prescription is not claimed to be a duplication of any other, nor
does Dentaurum imply that it is endorsed in any way by Drs. McLaughlin, Bennett and Trevisi.
non-convertible ∙ encoche distale ∙ Quantité : 10 pièces
Dents Torque Offset Distal Crochet Largeur REF (18) REF (22) Système
17-16/36-37 0° 6° • 3,3 mm 724-607-00 724-610-00
26-27/47-46 0° 6° • 3,3 mm 724-608-00 724-611-00
17-16/26-27/47-46/36-37 0° 6° 3,3 mm 724-609-00 724-612-00
Gorge 18 : 0,46 x 0,64 mm / 18 x 25
Gorge 22 : 0,56 x 0,70 mm / 22 x 28
non-convertible ∙ extension distale ∙ Quantité : 10 pièces
Dents Torque Offset Distal Crochet Largeur REF (18) REF (22) Système
17-16/36-37 0° 0° • 6,0 mm 725-164-00 725-166-00
Ricketts® Universal 18,
Standard Edgewise
26-27/47-46 0° 0° • 6,0 mm 725-165-00 725-167-00
Ricketts® Universal 18,
Standard Edgewise
17-16/36-37 0° 6° • 6,0 mm 725-168-00 725-170-00
26-27/47-46 0° 6° • 6,0 mm 725-169-00 725-171-00
Gorge 18 : 0,46 x 0,64 mm / 18 x 25
Gorge 22 : 0,56 x 0,70 mm / 22 x 28
