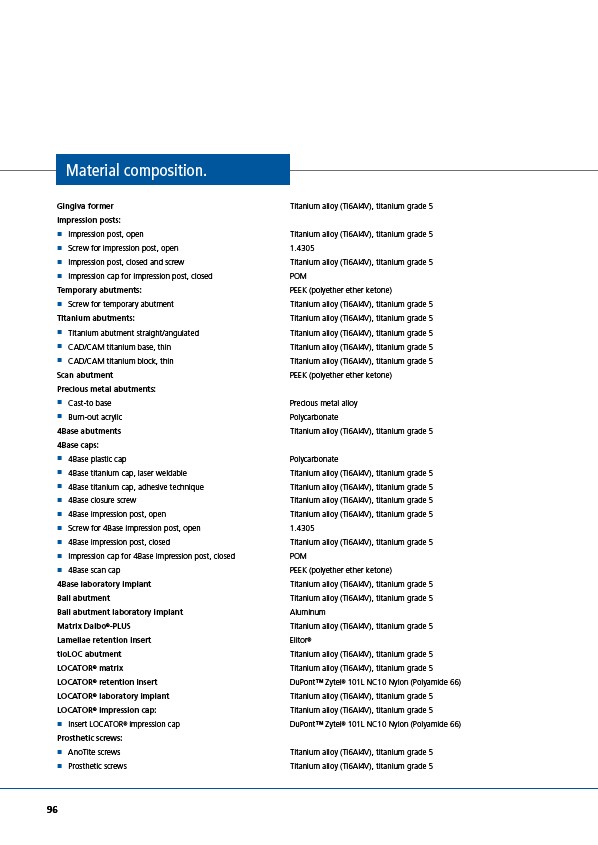

Material composition.
Gingiva former Titanium alloy (Ti6Al4V), titanium grade 5
Impression posts:
„ Impression post, open Titanium alloy (Ti6Al4V), titanium grade 5
„ Screw for impression post, open 1.4305
„ Impression post, closed and screw Titanium alloy (Ti6Al4V), titanium grade 5
„ Impression cap for impression post, closed POM
Temporary abutments: PEEK (polyether ether ketone)
„ Screw for temporary abutment Titanium alloy (Ti6Al4V), titanium grade 5
Titanium abutments: Titanium alloy (Ti6Al4V), titanium grade 5
„ Titanium abutment straight/angulated Titanium alloy (Ti6Al4V), titanium grade 5
„ CAD/CAM titanium base, thin Titanium alloy (Ti6Al4V), titanium grade 5
„ CAD/CAM titanium block, thin Titanium alloy (Ti6Al4V), titanium grade 5
Scan abutment PEEK (polyether ether ketone)
Precious metal abutments:
„ Cast-to base Precious metal alloy
„ Burn-out acrylic Polycarbonate
4Base abutments Titanium alloy (Ti6Al4V), titanium grade 5
4Base caps:
„ 4Base plastic cap Polycarbonate
„ 4Base titanium cap, laser weldable Titanium alloy (Ti6Al4V), titanium grade 5
„ 4Base titanium cap, adhesive technique Titanium alloy (Ti6Al4V), titanium grade 5
„ 4Base closure screw Titanium alloy (Ti6Al4V), titanium grade 5
„ 4Base impression post, open Titanium alloy (Ti6Al4V), titanium grade 5
„ Screw for 4Base impression post, open 1.4305
„ 4Base impression post, closed Titanium alloy (Ti6Al4V), titanium grade 5
„ Impression cap for 4Base impression post, closed POM
„ 4Base scan cap PEEK (polyether ether ketone)
4Base laboratory implant Titanium alloy (Ti6Al4V), titanium grade 5
Ball abutment Titanium alloy (Ti6Al4V), titanium grade 5
Ball abutment laboratory implant Aluminum
Matrix Dalbo®-PLUS Titanium alloy (Ti6Al4V), titanium grade 5
Lamellae retention insert Elitor®
tioLOC abutment Titanium alloy (Ti6Al4V), titanium grade 5
LOCATOR® matrix Titanium alloy (Ti6Al4V), titanium grade 5
LOCATOR® retention insert DuPont™ Zytel® 101L NC10 Nylon (Polyamide 66)
LOCATOR® laboratory implant Titanium alloy (Ti6Al4V), titanium grade 5
LOCATOR® impression cap: Titanium alloy (Ti6Al4V), titanium grade 5
„ Insert LOCATOR® impression cap DuPont™ Zytel® 101L NC10 Nylon (Polyamide 66)
Prosthetic screws:
„ AnoTite screws Titanium alloy (Ti6Al4V), titanium grade 5
„ Prosthetic screws Titanium alloy (Ti6Al4V), titanium grade 5
