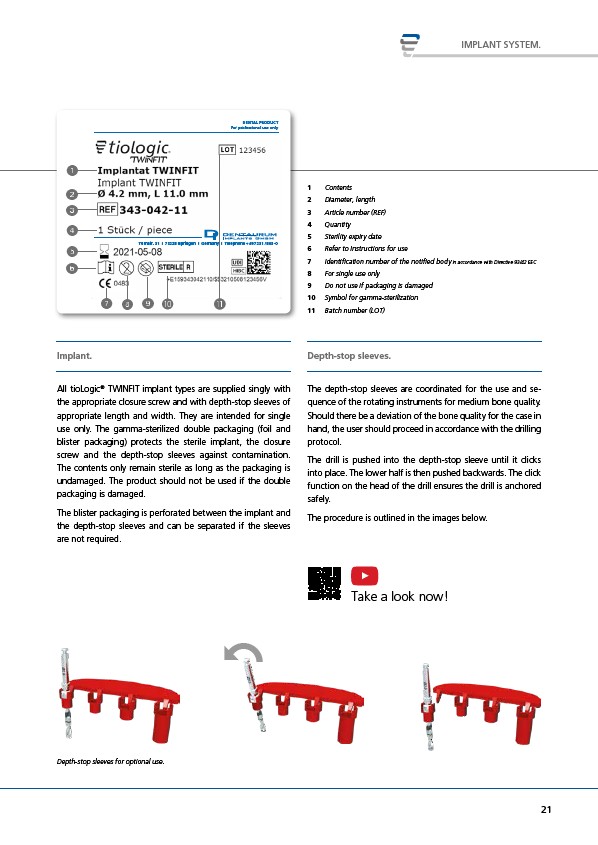

1 Contents
2 Diameter, length
3 Article number (REF)
4 Quantity
5 Sterility expiry date
6 Refer to Instructions for use
7 Identification number of the notified body in accordance with Directive 93/42 EEC
8 For single use only
9 Do not use if packaging is damaged
10 Symbol for gamma-sterilization
11 Batch number (LOT)
Take a look now!
IMPLANT SYSTEM.
3
4
5
Implant.
DENTAL PRODUCT
For professional use only
All tioLogic® TWINFIT implant types are supplied singly with
the appropriate closure screw and with depth-stop sleeves of
appropriate length and width. They are intended for single
use only. The gamma-sterilized double packaging (foil and
blister packaging) protects the sterile implant, the closure
screw and the depth-stop sleeves against contamination.
The contents only remain sterile as long as the packaging is
undamaged. The product should not be used if the double
packaging is damaged.
The blister packaging is perforated between the implant and
the depth-stop sleeves and can be separated if the sleeves
are not required.
Depth-stop sleeves.
The depth-stop sleeves are coordinated for the use and sequence
of the rotating instruments for medium bone quality.
Should there be a deviation of the bone quality for the case in
hand, the user should proceed in accordance with the drilling
protocol.
The drill is pushed into the depth-stop sleeve until it clicks
into place. The lower half is then pushed backwards. The click
function on the head of the drill ensures the drill is anchored
safely.
The procedure is outlined in the images below.
Turnstr. 31 I 75228 Ispringen I Germany I Telephone + 49 72 31 / 803 - 0
2
7
6
8 9
Depth-stop sleeves for optional use.
