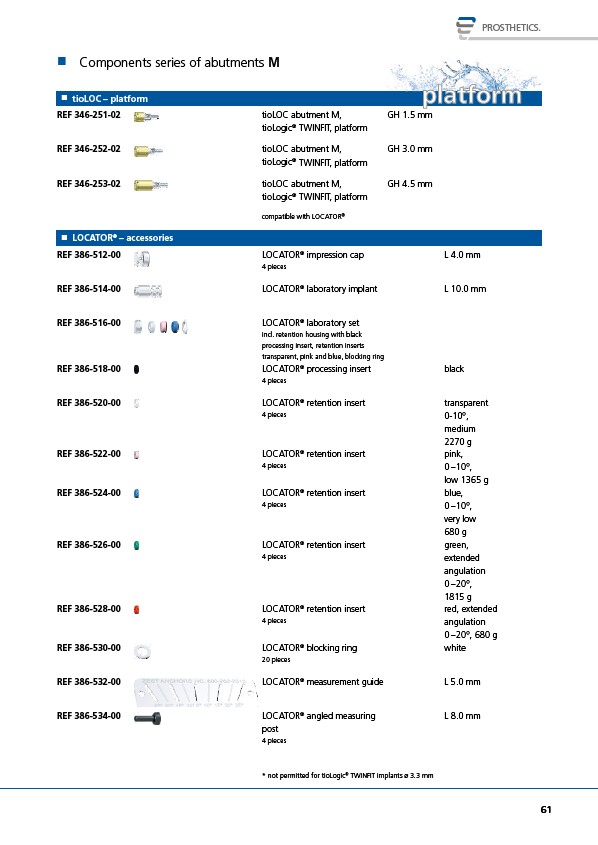

PROSTHETICS.
61
„„Components series of abutments M
compatible with LOCATOR®
„„LOCATOR® – accessories
REF 386-512-00 LOCATOR® impression cap
4 pieces
L 4.0 mm
REF 386-514-00 LOCATOR® laboratory implant L 10.0 mm
REF 386-516-00 LOCATOR® laboratory set
incl. retention housing with black
processing insert, retention inserts
transparent, pink and blue, blocking ring
REF 386-518-00 LOCATOR® processing insert
4 pieces
black
REF 386-520-00 LOCATOR® retention insert
4 pieces
transparent
0-10°,
medium
2270 g
REF 386-522-00 LOCATOR® retention insert
4 pieces
pink,
0 – 10°,
low 1365 g
REF 386-524-00 LOCATOR® retention insert
4 pieces
blue,
0 – 10°,
very low
680 g
REF 386-526-00 LOCATOR® retention insert
4 pieces
green,
extended
angulation
0 – 20°,
1815 g
REF 386-528-00 LOCATOR® retention insert
4 pieces
red, extended
angulation
0 – 20°, 680 g
REF 386-530-00 LOCATOR® blocking ring
20 pieces
white
REF 386-532-00 LOCATOR® measurement guide L 5.0 mm
REF 386-534-00 LOCATOR® angled measuring
post
4 pieces
L 8.0 mm
„„tioLOC – platform
REF 346-251-02 tioLOC abutment M,
tioLogic® TWINFIT, platform
GH 1.5 mm
REF 346-252-02 tioLOC abutment M,
tioLogic® TWINFIT, platform
GH 3.0 mm
REF 346-253-02 tioLOC abutment M,
tioLogic® TWINFIT, platform
GH 4.5 mm
* not permitted for tioLogic® TWINFIT implants ø 3.3 mm
